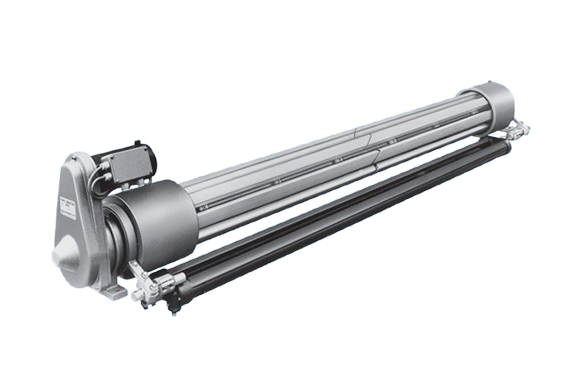

Toyo Machinery Co., Ltd. WEX-100, WEX-200 Webstar

Manufacturer: Toyo Machinery Co., Ltd.
Model: WEX-100, WEX-200

Features

A unique guiding mechanism is provided, by which both web expansion and the correction of zig-zag movement at the corners are achieved.
Web nipping is prevented, whereby the original texture of the web is preserved without distortion.
Corner installation is enabled, by which space-saving arrangement is effectively achieved.
Compatibility with various sensors is supported, allowing flexible combinations to be implemented as required.
Installation and maintenance are simplified, whereby ease of handling and operational efficiency are ensured.
Synchronization with line speed is enabled through the use of a pulley system, by which stable operation is maintained.
Web tension is made adjustable through the use of a pulley, thereby allowing precise control to be achieved.

DATA	WEX-100	WEX-200
	Standard	For wide web
Roller Diameter	190 mm
Quantity of Slat Bar	Center separate type, L/R each 8 pcs.
Roller Face Length	~2400 mm	~3200 mm
Line Speed (up to condition)	MAX. 150 m/min
Line Tension per full width	MAX. 80 kgf
Model of DC Motor	DMM-10	DMM-20
Amount of Horizontal Movement	MAX. ±40 mm
Amount of Expansion	Approx. 20 mm / 0.5 rev. MAX
Mass	Approx. 140 kg / 2100 mm
Control Panel	PCP-15A	PCP-45A

Original guiding systems are offered by the WEBSTAR Model WEX series, by which both web expansion and zig-zag correction are performed simultaneously.
A space-saving design is achieved, as installation at the corner of the line is enabled.
Zig-zag correction is carried out through both dynamic response and static offset, whereby accurate web guiding is ensured.
Compatibility with various models of edge sensors and centering sensors is provided, allowing flexible combinations to be implemented.
