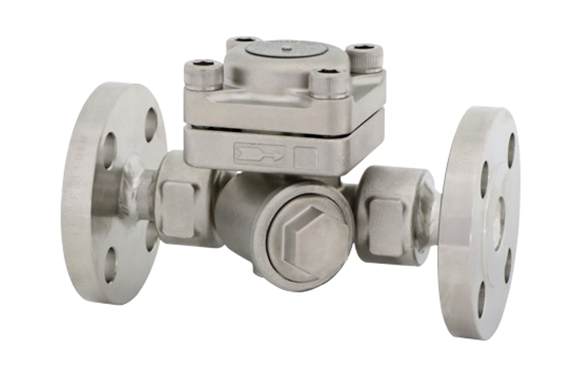

Venn AD-22F Steam Trap
Manufacturer: Venn Co., Ltd.
Model: AD-22F
Features
- Both the main body and key components make of stainless steel.
- In addition, it can mount horizontally or vertically with the outlet facing downward.
- However, mounting with the top lid facing downward does not allowed.
- Moreover, it supports a wide pressure range.
- As a result, it is suitable for many different applications.
Specifications
| Product Symbol | AD22F-D |
|---|---|
| Types of valves | Steam trap |
| Form | disc |
| Nominal diameter | 15～25（1/2～1） |
| Applicable fluids | Steam |
| Fluid temperature | Below 220°C |
| Application pressure | 0.03～1.6MPa |
| Maximum continuous discharge | 900L/h |
| End connection | JIS 20KRF Flange |
| Mounting Position | Horizontal, vertical (outlet facing down), horizontal mounting freely (excluding top lid facing down) |
| Strainer | 80 mesh |
| Material: Body | SCS |
| Material: Valve seat | SUS |
| Material: Disc | SUS |
