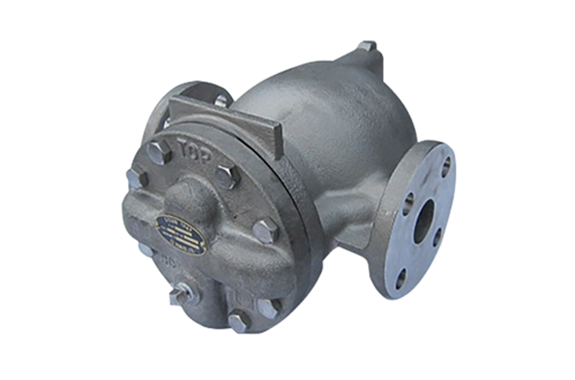

Venn AF-21F type steam trap
Manufacturer: Venn Co., Ltd.
Model: AF-21F
Features
- By adopting a thermo-type air vent valve, warm-up time shorten and air-related problems prevent.
- In addition, it supports a wide pressure range and can be used in many applications.
- Moreover, it operates stably regardless of the amount of drainage generated.
- Furthermore, by changing the cover position, it can also be used for vertical piping from top to bottom.
Specifications
| Product code | AF21F -DL | AF21F -DH |
|---|---|---|
| Valve type | steam trap | |
| format | Float type | |
| Nominal diameter | 20-50 (3/4-2) | |
| Applicable fluid | steam | |
| Fluid temperature | 180 ℃ or less | |
| Applicable pressure | 0.4MPa or less | 0.9MPa or less |
| Maximum continuous emissions | 5000L / h | 4310L / h |
| End connection | JIS 10K FF flange | |
| Mounting posture | Horizontal / rearranged vertically (top to bottom) | |
| Material body | SCS | |
| Material Main part valve body | SUS | |
| Material Main part Valve seat | SUS | |
| Material main part float | SUS | |
