Venn Co.

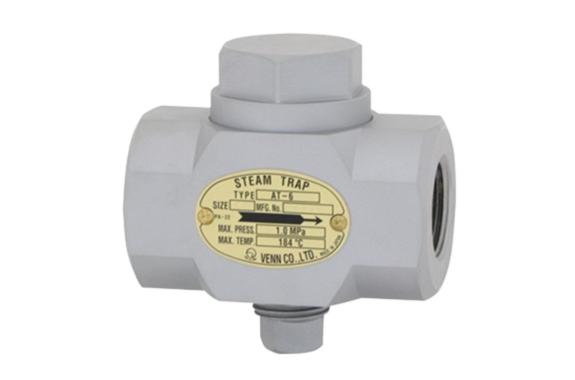

Venn AT-6 type steam trap
Manufacturer: Venn Co., Ltd.
Model: AT-6
Features
- The thermo element makes of SUS316L, which offers excellent corrosion resistance and durability.
- In addition, it can mount freely in horizontal or vertical orientations.
- Moreover, it operates at a temperature 10 °C lower than the saturated steam temperature.
- As a result, raw steam does not discharge and the valve body does not run empty.
- Therefore, energy efficiency improves.
Specifications
| Product code | AT6-N | AT6-D |
|---|---|---|
| Valve type | steam trap | |
| format | Thermo element type | |
| Nominal diameter | 15-25 (1/2-1) | |
| Applicable fluid | Saturated steam | |
| Fluid temperature | 184 ℃ or less | |
| Applicable pressure | 1.0MPa or less | |
| Maximum continuous emissions | 2480L / h | |
| End connection | JIS Rc screw | |
| Mounting posture | Horizontal / vertical / horizontal mounting free | |
| Material body | SS | SUS |
| Material Main part valve body | SUS304 | |
| Material Main part Valve seat | SUS304 | |
| Material Main part Thermo element | SUS316L | |
