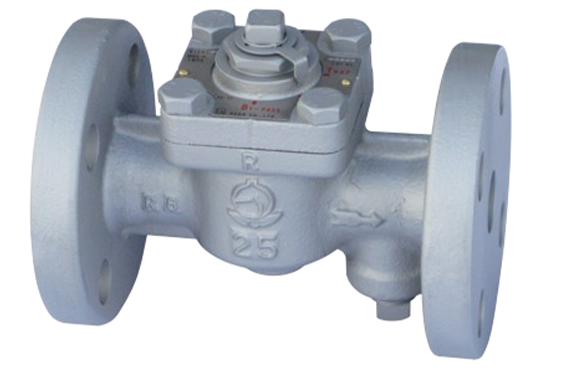

Venn ATB-5F type Steam trap with bypass
Manufacturer: Venn Co., Ltd.
Model: ATB-5F
Features
- Because it has a large discharge capacity, it can be used from pipe ends to large equipment.
- In addition, it operates at a temperature 10 °C lower than saturated steam.
- For nominal diameters 32 to 50, it operates at 15 °C lower.
- As a result, raw steam does not discharge and the valve body does not run empty.
- Therefore, energy efficiency improves.
- Moreover, nominal diameters 32 to 50 use a movable valve body.
- This provides excellent sealing performance and high durability.
- Finally, a test valve can attach directly to the trap.
Specifications
| Product code | ATB5F-G |
|---|---|
| Valve type | steam trap |
| format | Thermo element type |
| Nominal diameter | 15-50 (1/2-2) |
| Applicable fluid | Saturated steam |
| Fluid temperature | 184 ℃ or less |
| Applicable pressure | 1.0MPa or less |
| Maximum continuous emissions | 6250L / h |
| End connection | JIS 10K FF flange |
| Mounting posture | Horizontal / vertical / horizontal mounting free |
| Material body | FC |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Material cock | CAC406 |
| Material Thermo element | SUS316L |
