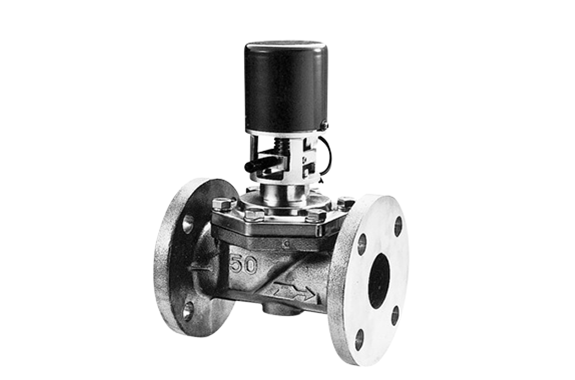

Venn EBF-1W Electromagnetic Emergency Shut-Off Valve
Manufacturer: Venn Co., Ltd.
Model: EBF-1W
Features
- Small size and light weight.
- It can use in a wide pressure range.
- With a wide range of variations, you can choose the valve that suits your usage conditions.
Specification
| Product Symbol | EBF1W-F |
|---|---|
| Types of valves | electric |
| Activate | Valve closure in case of power failure |
| Nominal diameter | 15～50（1/2～2） |
| Applicable fluids | Water & Air・Inert gas |
| Fluid temperature | 5～60℃ |
| Application pressure | 0～1.0MPa |
| Fluid viscosity | 50cSt or less |
| Rated voltage | AC100V 50/60Hz or AC200V 50/60Hz only. |
| Rated current | AC100V：0.3A、AC200V：0.15A |
| Starting current | AC100V：1.0A、AC200V：0.5A |
| Protective structure | Dustproof type (type E insulated) / indoor use |
| Ambient temperature | 5～40℃ |
| End connection | JIS 10K FF Flange |
| Mounting Position | Upright mounting on horizontal piping |
| Material: Body | CAC406 |
| Material: Diaphragm | NBR |
