Manufacturer: Venn Co., Ltd.

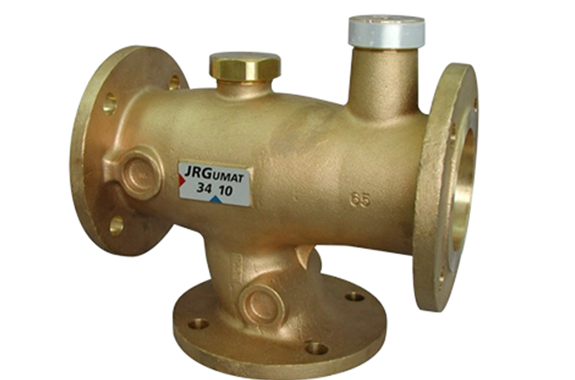

Model: JRG3410
Features
- You can easily supply hot water by simply connecting the hot water and water lines.
In addition, the thermo element responds quickly to changes in hot water and water pressure.
As a result, hot water supply at a stable temperature.
Moreover, it supports both double-pipe (circulation) and single-pipe systems.
Furthermore, it uses corrosion-resistant materials such as bronze, stainless steel, and resin.
Finally, it is lightweight and compact, which improves workability and saves space.
Specifications
| Product code | JRG3410 |
|---|
| Valve type | Mixing valve |
|---|
| Nominal diameter | 65/80 (2 1/2/3) |
|---|
| Standard set temperature | 40℃・55℃ |
|---|
| Adjusted temperature range | 30-45℃ / 45-65℃ |
|---|
| Applicable fluid | Hot water / water |
|---|
| Fluid temperature | 80℃・90℃ |
|---|
| Applicable pressure | 1.0MPa or less |
|---|
| Pressure difference between hot water and water input side | Within 0.05MPa |
|---|
| End connection | DIN PN10 flange |
|---|
| Mounting posture | Horizontal / vertical / horizontal mounting free |
|---|
| accessories | Hex wrench for temperature control, heat insulation cover |
|---|
| Material body | CAC |
|---|
| Material parts | SUS / CAC / resin |
|---|
