Manufacturer: Venn Co., Ltd.

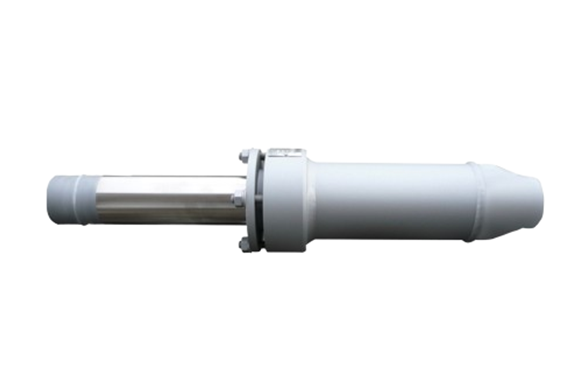

Model: JS-7HW
Features
- It has a highly secure structure.
- In addition, it allows a large amount of elasticity.
- Moreover, no lubrication requires.
- Finally, all-SUS products can also use for water supply applications.
Specifications
| Product Symbol | JS7HW-N |
|---|
| Types of valves | Sleeve Expansion Tube Fittings |
|---|
| Nominal diameter | 20～300（3/4～12） |
|---|
| Applicable fluids | Steam, air, gas, water, hot water, oil |
|---|
| Fluid temperature | Below 220°C |
|---|
| Maximum working pressure | 2.0MPa |
|---|
| End connection | butt welding |
|---|
| Expansion and contraction | 100mm |
|---|
| Elongation | 20mm |
|---|
| Shrinkage | 80mm |
|---|
| Material Outer cylinder | STPG |
|---|
| Material: Sleeve | SUS |
|---|
| Material: Packing | Graphite |
|---|
