Venn Co.

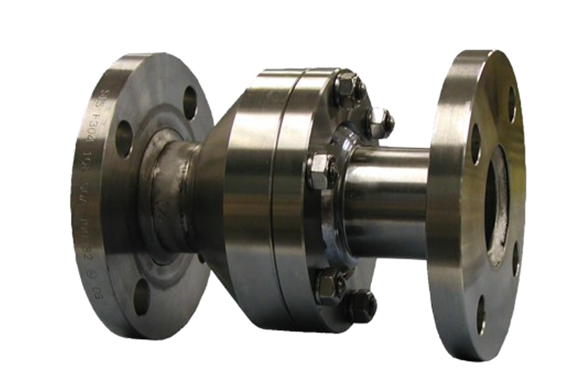

Venn JU-13F Seismic Isolation Ball Joint
Manufacturer: Venn Co., Ltd.
Model: JU-13F
Features
- Because it can absorb large displacements, the distance between ball joints can shorten.
- As a result, the required installation space reduces.
- In addition, the force applied to the anchor is small.
- Therefore, the anchor can make smaller and more compact.
Specifications
| Product Symbol | JU13F-N |
|---|---|
| Types of valves | Ball Joints |
| Nominal diameter | 40～250（1 1/2～10） |
| Applicable fluids | Steam, air, gas, oil, water, hot water |
| Fluid temperature | Below 220°C |
| Maximum working pressure | 2.0MPa |
| End connection | JIS 20K FF Flange |
| Maximum displacement angle | 30 degrees |
| Material: Body | SS or S25C |
| Packing Material | carbon-containing PTFE |
| Material: Ball | SUS |
