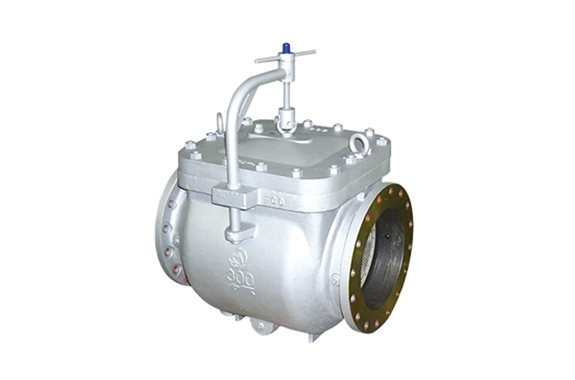

Venn KT-1D Strainer
Manufacturer: Venn Co., Ltd.
Model: KT-1D
Features
- This is a straight-type strainer with a new design concept.
- It solves common problems found in conventional strainers, such as complex installation, difficult maintenance, and pressure loss.
- In addition, the KT-1D model features a davit-type structure.
- As a result, the top lid can lift easily.
- Moreover, the KT-1A model is ideal for locations that require frequent cleaning.
- This is because the strainer screen can inspect by loosening just one bolt.
Specifications
| Product Symbol | KT1D-G |
|---|---|
| Types of valves | Straight |
| Types | Davit |
| Nominal diameter | 250・300（10・12） |
| Applicable fluids | Steam, gas, liquid |
| Fluid temperature | Below 184°C |
| Application pressure | 1.0MPa or less |
| End connection | JIS 10K FF Flange |
| Website | 20, 40, 60, 80, 100 mesh |
| Allowable differential pressure | Less than 0.1MPa |
| Painting | Inner surface: Anti-rust oil Outer surface: Silver |
| Material: Body | FC |
| Material: Net | SUS |
| Material: Lid | FC |
