Venn Co.

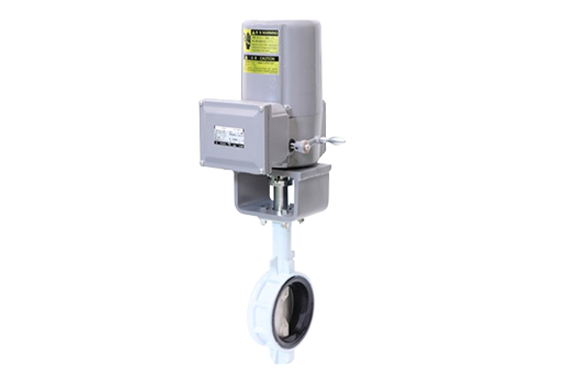

Venn MR-5C Electric Butterfly Emergency Shut-Off Valve (Electric Opening)
Manufacturer: Venn Co., Ltd.
Model: MR-5C
Features
- Due to its small size and lightweight design, it can easily install in existing aquariums.
- The wetted part makes from a rust-resistant material.
Specification
| Product Symbol | MR5C-M |
|---|---|
| Types of valves | electric |
| Types | Nylon Coating |
| Activate | On-off actuation (90° forward and reverse rotation) |
| Nominal diameter | 50～200（2～8） |
| Applicable fluids | Water |
| Fluid temperature | 0~60°C (cannot be frozen) |
| Application pressure | 1.0MPa or less |
| Rated voltage | DC24V |
| Protective structure | Rainproof type (IP55 equivalent) |
| Ambient temperature | －20～60℃ |
| End connection | Wafer type (compatible with JIS 5K and 10K flanges) |
| Mounting Position | Upright mounting on horizontal piping |
| Allowable leakage | None (pressure gauge visual) |
| Attachment mechanism | Limit switch (valve opening and closing side, no voltage contact signal), manual opening and closing handle |
| Insulation and time rating | Type E, 30 minutes |
| Material: Body | FCD (Nylon Coating) |
| Material: Valve body | SCS |
| Material: Sheet | EPDM |
