Manufacturer: Venn Co., Ltd.

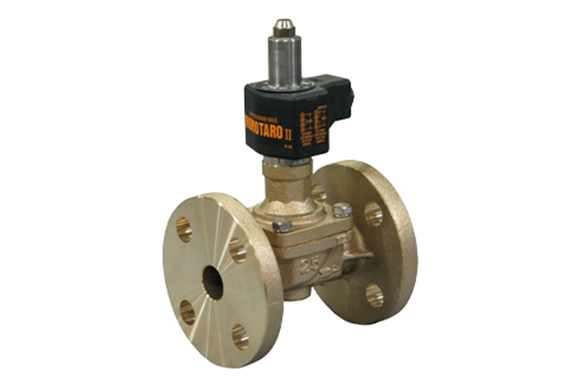

Model: PF-22C
Features
- It is more than three times as durable as our conventional products.
- In addition, it can use across a wide pressure range from 0 to 1.0 MPa.
- Moreover, it can install both vertically and horizontally.
- Finally, for nominal diameters of 25 or less, the coil exterior is made of heat-resistant thermosetting resin.
Specifications
| Product Symbol | PF22C-W |
|---|
| Types | piston |
|---|
| Activate | Energized and closed |
|---|
| Nominal diameter | 15～50（1/2～2） |
|---|
| Applicable fluids | Steam, water, air, oil (about kerosene, light oil) |
|---|
| Fluid temperature | 5~180°C (100°C or less for hot water) |
|---|
| Fluid viscosity | Below 20cSt |
|---|
| Application pressure | 0～1.0MPa |
|---|
| Minimum differential pressure before and after the valve | 0 MPa (0.03 MPa if the coil is horizontal) |
|---|
| Allowable leakage | Steam, water, oil: None (pressure gauge visual), Air: 50mL/min (standard condition) or less (0.05~1.0MPa) |
|---|
| Rated voltage | AC100/200V 50/60Hz AC110/220V 60Hz Shared |
|---|
| Insulation type | H type |
|---|
| Ambient temperature | 5～60℃ |
|---|
| Protective structure | dust-proof/splash-proof/indoor(For outdoor use, please use the TB-03 terminal box together.) |
|---|
| End connection | JIS 10K FF Flange |
|---|
| Mounting Position | Horizontal and vertical (excluding coils facing down to mounting piping) |
|---|
| Material: Body | CAC408 |
|---|
| Material: Valve body | C3604, PTFE disc |
|---|
