Manufacturer: Venn Co., Ltd.

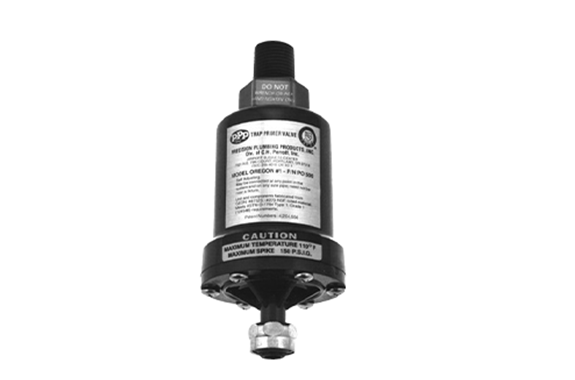

Model: PO-500
Features
- It detects pressure drops in the water supply pipe and automatically replenishes water.
- In addition, the built-in check valve eliminates the need for a separate check valve.
Specifications
| Product code | PO-500 |
|---|
| Valve type | Trap primer valve |
|---|
| Nominal diameter | 15 (1/2) |
|---|
| End connection | Inlet: NPT 1/2 screw Outlet: NPT 1/2 union screw |
|---|
| Working pressure range | 0.25-0.52MPa |
|---|
| Applicable temperature | 5-43 ℃ |
|---|
| Allowable impact pressure | 1.0MPa |
|---|
| Mounting posture | Vertical mounting with threads facing up |
|---|
