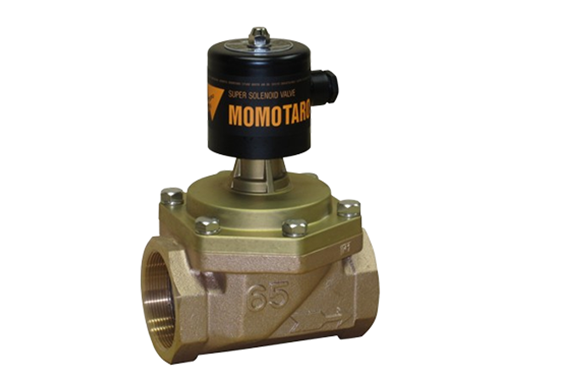

Manufacturer: Venn Co., Ltd.
Model: PS-12
Features
- It is suitable for steam, water, air, and oil.
- In addition, it can use across a wide pressure range from 0 to 1.0 MPa.
- Moreover, the series includes both energized-open and energized-closed types.
Specifications
| Product Symbol | PS12-W |
|---|
| Types | piston |
|---|
| Activate | Power on |
|---|
| Nominal diameter | 65（2 1/2） |
|---|
| Applicable fluids | Steam, water, air, oil (about kerosene, light oil) |
|---|
| Fluid temperature | 5~180°C (100°C or less for hot water) |
|---|
| Fluid viscosity | Below 20cSt |
|---|
| Application pressure | 0～1.0MPa |
|---|
| Minimum differential pressure before and after the valve | 0MPa |
|---|
| Allowable leakage | Steam, water, oil: None (pressure gauge visual), Air: 50mL/min (standard condition) or less (0.05~1.0MPa) |
|---|
| Rated voltage | AC100/200V 50/60Hz AC110/220V 60Hz Shared |
|---|
| Insulation type | H type |
|---|
| Ambient temperature | 5～60℃ |
|---|
| Protective structure | Dustproof, splash-proof, and indoor use (If used outdoors, please use the TB-03 terminal box together.) |
|---|
| End connection | JIS Rc Screw |
|---|
| Mounting Position | Upright mounting with coils up on horizontal piping |
|---|
| Rated current | AC100V：0.60A、AC200V：0.30A |
|---|
| Starting current | AC100V：2.50A、AC200V：1.25A |
|---|
| Material: Body | CAC406 |
|---|
| Material: Valve body | SUS, PTFE discs |
|---|
