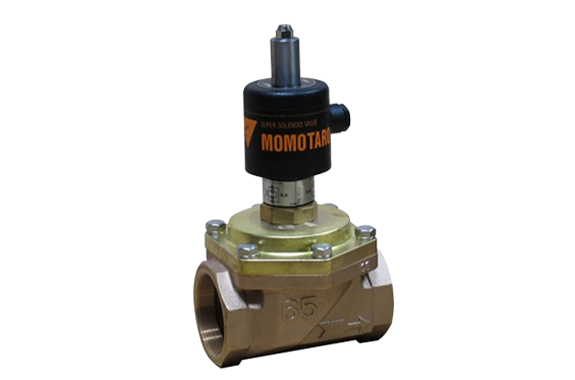

Manufacturer: Venn Co., Ltd.
Model: PS-12C
Features
- It is compatible with steam, water, air, and oil.
- In addition, it can use over a wide pressure range from 0 to 1.0 MPa.
- The series includes both energized-open and energized-closed types.
Specifications
| Product code | PS12C-W |
|---|
| type | Piston type |
|---|
| Actuation | Energized closed |
|---|
| Nominal diameter | 65 (2 1/2) |
|---|
| Applicable fluid | Steam / water / air / oil (kerosene / light oil) |
|---|
| Fluid temperature | 5 to 180 ° C (100 ° C or less for hot water) |
|---|
| Fluid viscosity | 20cSt or less |
|---|
| Applicable pressure | 0-1.0MPa |
|---|
| Minimum differential pressure before and after the valve | 0MPa |
|---|
| Allowable leakage amount | Steam / water / oil: None (visual pressure gauge), air: 50 mL / min (standard condition) or less (at 0.05 to 1.0 MPa) |
|---|
| Rated voltage | AC100 / 200V 50 / 60Hz AC110 / 220V 60Hz shared |
|---|
| Insulation type | H species |
|---|
| Ambient temperature | 5-60 ℃ |
|---|
| Protective structure | Dust-proof, drip-proof, indoor use (when using outdoors, use the TB-03 type terminal box together. |
|---|
| End connection | JIS Rc screw |
|---|
| Mounting posture | Upright mounting with coil up on horizontal piping |
|---|
| Rated current | AC100V: 0.60A, AC200V: 0.30A |
|---|
| Starting current | AC100V: 2.50A, AC200V: 1.25A |
|---|
| Material body | CAC406 |
|---|
| Material Valve body | SUS, PTFE disc included |
|---|
