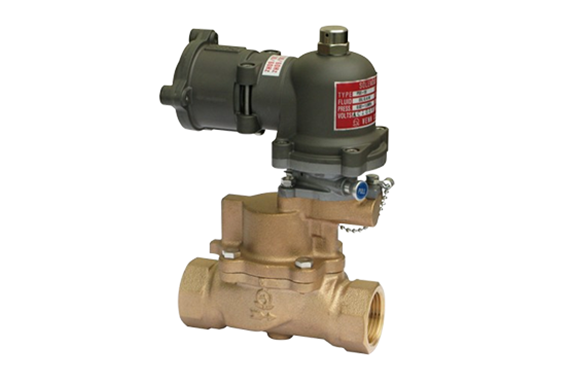

Venn PSE-18 Explosion-proof solenoid valve
Manufacturer: Venn Co., Ltd.
Model: PSE-18
Features
- It designs for use in explosive hazardous areas.
- Equipped with a manual mechanism, it can easily operate for test runs or in the event of a power failure.
- The direction of the conduit thread can adjust, making installation and wiring easier.
- Additionally, the straight type can attach to the pipe end core, preventing the occurrence of red water.
Specifications
| Product Symbol | PSE18-J1 | PSE18-J2 |
|---|---|---|
| Types | piston | |
| Shape | Straight | |
| Activate | Power on | |
| Nominal diameter | 15～50（1/2～2） | |
| Applicable fluids | Oil (about kerosene, light oil)・Inert gas and air | |
| Fluid temperature | 5～60℃ | |
| Fluid viscosity | 50cSt or less | |
| Application pressure | 0.02～1.0MPa | |
| Minimum differential pressure before and after the valve | 0.02MPa | |
| Allowable leakage | None (pressure gauge visual) | |
| Rated voltage | AC100/110V 50/60Hz | AC200/220V 50/60Hz |
| Insulation type | H type | |
| Ambient temperature | 5～50℃ | |
| Protective structure | Explosion-proof structure d2G4 (outdoor installation possible) | |
| End connection | JIS Rc Screw | |
| Mounting Position | Upright mounting with coils up on horizontal piping | |
| Material: Body | CAC406 | |
| Material: Valve body | SUS | |
| Material: Disc | FKM | |
