Venn Co.

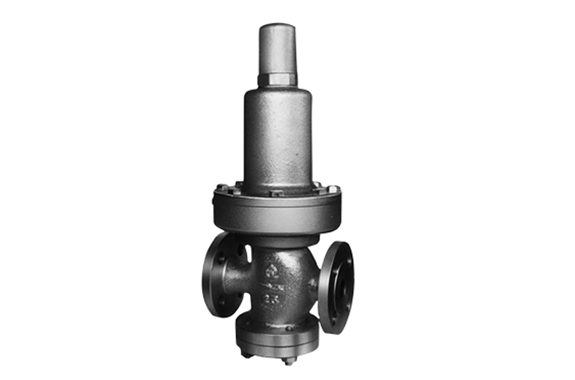

Venn RD-16 type pressure reducing valve (for water / liquid)
Manufacturer: Venn Co., Ltd.
Model: RD-16
Specifications
| Product code | RD16-CH | RD16-CL |
|---|---|---|
| Valve type | Pressure reducing valve | |
| Nominal diameter | 20-50 (3/4-2) | |
| Applicable fluid | Water / liquid | |
| Fluid temperature | 5-80 ℃ | |
| Fluid viscosity | 700cSt or less | |
| Primary side applied pressure | 2.7MPa or less | |
| Secondary adjustment pressure range (set pressure) | 0.3-0.7MPa See applicable pressure selection diagram | 0.05-0.35MPa See applicable pressure selection diagram |
| Minimum differential pressure before and after the valve | 0.05MPa | |
| Deadline boost | 0.035MPa or less | |
| Allowable leakage amount | None (visual pressure gauge) | |
| offset | Within 0.1MPa | Within 0.07MPa |
| End connection | JIS 10, 16, 20, 30K RF flange | |
| Mounting posture | Upright mounting on horizontal piping | |
| Material body | SCPH | |
| Material Valve body | SUS | |
| Material Valve seat | SUS | |
| Material diaphragm | NBR | |
| Material disc | NBR | |
