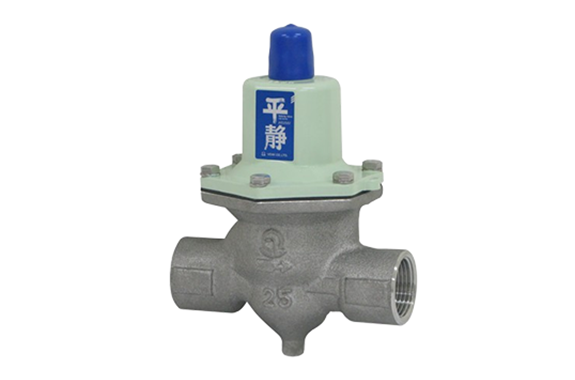

Venn RD-35 Pressure Reducing Valve (for Water, Hot Water, and Air)
Manufacturer: Venn Co., Ltd.
Model: RD-35
Features
- It can also use for red water expulsion and stainless-steel piping with the main body SCS.
- It has a low noise design.
- It is about 50% smaller and lighter than conventional FC products.
- If the diaphragm damages, water will not leak to the outside.
- You can install a pressure gauge directly on the body. (Secondary side only)
Specifications
| Product Symbol | RD35-D |
|---|---|
| Types of valves | Pressure Reducing Valve |
| Types | For 1.0MPa or less |
| Nominal diameter | 15～40（1/2～1 1/2） |
| Applicable fluids | Water, hot water, (air, inert gas) |
| Fluid temperature | 5～90℃ |
| Primary Side Application Pressure | 1.0MPa or less |
| Secondary Side Regulation Pressure Range (Set Pressure) | L ：0.05～0.35MPa、 H ：0.3～0.7MPa |
| Maximum Reduction Ratio | 10:1 |
| Minimum differential pressure before and after the valve | 0.05MPa |
| Allowable leakage | None (pressure gauge visual) |
| End connection | JIS Rc Screw |
| Mounting Position | Horizontal and vertical freedom |
| Material: Body | SCS |
| Material: Diaphragm | Chlorine Water Resistant EPDM |
| Material: Disc | Chlorine Water Resistant EPDM |
| Material Key parts | SUS |
| Material: Spring case | ADC |
