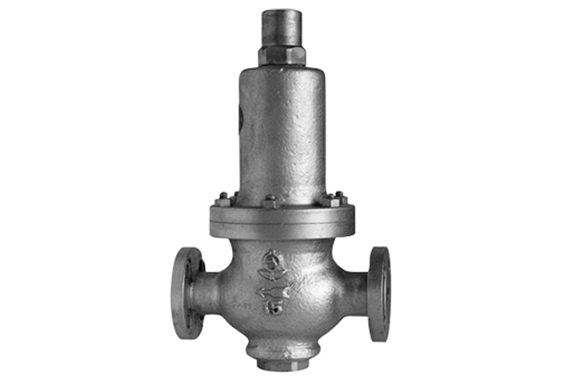

Venn RD-8 type pressure reducing valve for air / gas
Manufacturer: Venn Co., Ltd.
Model: RD-8 type
Features
- Because it is a direct-acting type, it provides stable control from small to large flow rates.
- As a result, it is used to reduce pressure in various air lines and high-pressure gas lines.
- In addition, the valve body has a balanced structure.
- Therefore, changes in primary pressure have only a small effect on the secondary pressure.
Specifications
| Product code | RD8-C |
|---|---|
| Nominal diameter | 15-40 (1/2-1 1/2) |
| Applicable fluid | Air / gas |
| Fluid temperature | 5-80 ℃ |
| Primary side applied pressure | 3.0MPa or less |
| Secondary adjustment pressure range | Nominal diameter 15 to 25: L: 0.2 to 0.3, M: 0.3 to 0.6, H: 0.6 to 0.9, S: 0.9 to 1.1, V: 1.1 to 1.4MPa Nominal diameter 32 to 40: L: 0.2 to 0.25, M: 0.25 to 0.65, H: 0.65 to 0.9, S: 0.9 to 1.1, V: 1.1 to 1.4 MPa |
| Maximum decompression ratio | 10: 1 |
| Minimum differential pressure before and after the valve | 0.05MPa |
| Deadline boost | Set pressure x 5% or less (minimum value 0.03MPa) |
| End connection | JIS 16, 20, 30K RF flange |
| Material body | SCPH |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Material disc | PCTFE |
| Mounting posture | Upright mounting on horizontal piping |
