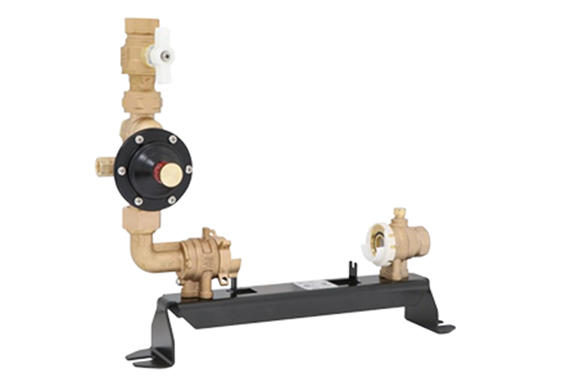

Venn RMU-5 type meter unit
Manufacturer: Venn Co., Ltd.
Model: RMU-5
Features
- Lightweight and compact design considering workability in a narrow pipe shaft.
- A tool-free crimping type that allows you to install and remove the meter by operating the handle.
- It corresponds to the vertical / horizontal piping and the flow direction from the right / left.
- The pedestal part has excellent corrosion resistance.
- A water stop cap can attach to the water stopcock part.
Specifications
| Product code | RMU5-FHL6 | RMU5-FHL3 |
|---|---|---|
| Valve type | Meter unit | |
| type | With pressure reducing valve | |
| Nominal diameter | 20 (3/4) | |
| Applicable fluid | Tap water | |
| Fluid temperature | At normal temperature | |
| Primary side applied pressure | 1.0MPa or less | |
| Secondary adjustment pressure range (set pressure) | 0.20-0.30MPa (0.20MPa ) | 0.20-0.30MPa (0.25MPa ) |
| Pressure reducing valve maximum pressure reducing ratio | 10:01 | |
| End connection | JIS Rc 3/4 screw (built-in movable tube end core) | |
| Pressure resistance | 1.75MPa | |
| accessories | Union gasket, heat insulation case (self-extinguishing property), test gag, pressure gauge joint (for secondary side, main body installed) | |
| strainer | 60 mesh (built-in pressure reducing valve) | |
| Material body | Bronze casting, etc. | |
| Material pedestal | Steel plate | |
| Material Pressure reducing valve | Bronze casting, etc. | |
