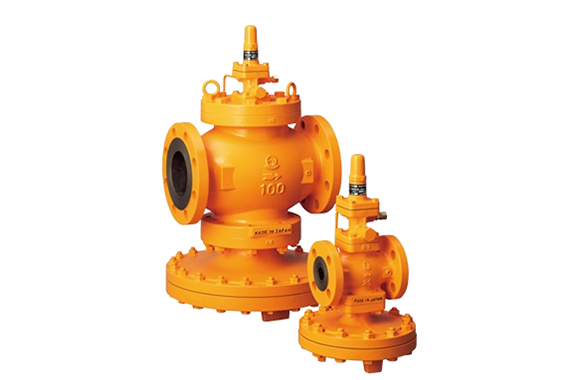

VENN RP-70 type pressure reducing valve for steam
Manufacturer: Venn Co., Ltd.
Model: RP-70 type
Features
- The diaphragm type provides stable control even in high flow rate applications.
- It operates stably due to its unique patent-pending structure.
- It can use for a wider pressure range and flow rate range.
- The external inspection type filter makes it easy to inspect the filter.
- Made in high quality pure Japan.
Specifications
| Product code | RP70-L |
|---|---|
| Adjustment method | Adjustable screw type |
| type | Diaphragm type / external detection method |
| Nominal diameter | 15-100 (1/2-4) |
| Applicable fluid | steam |
| Fluid temperature | 220 ° C or less |
| Primary side applied pressure | 2.0MPa or less |
| Secondary adjustment pressure range | L: 0.03 to 0.8MPa, H: 0.8 to 1.4MPa |
| Maximum decompression ratio | 20: 1 |
