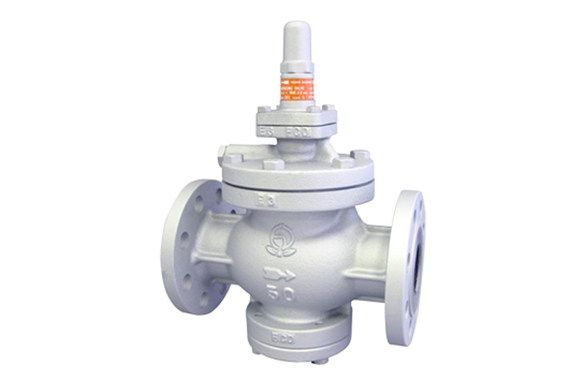

Venn RP-9A type pressure reducing valve for air / gas
Manufacturer: Venn Co., Ltd.
Model: RP-9A type
Features
- This is a pilot-type pressure reducing valve for high-pressure air and gas.
- In addition, it is a sister model of the RP-9, RP-10, and RP-11 steam pressure reducing valves.
- Moreover, the face-to-face dimensions match the former RP-2HA pressure reducing valve.
- At the same time, the weight is reduced by about 40%.
- For nominal diameter selection, please refer to pages 21 and 22 of the catalog.
Specifications
| Product code | RP9A-L | RP9A-M |
|---|---|---|
| type | Made of ductile cast iron | |
| Nominal diameter | 15-150 (1/2-6) | |
| Applicable fluid | Air / gas | |
| Fluid temperature | 5 ~ 80 ° C | |
| Primary side applied pressure | 2.0MPa or less | |
| Secondary adjustment pressure range | 0.03 ~ 0.8MPa | 0.03 ~ 0.8MPa |
| Maximum decompression ratio | 10: 1 | |
| Minimum differential pressure before and after the valve | 0.07MPa | |
| Deadline boost | 0.02MPa or less | |
| offset | Within 0.02MPa (Secondary adjustment pressure 0.03 to 0.035MPa) Within 0.03MPa (Secondary adjustment pressure over 0.035 0.07MPa) Within 0.05MPa (Secondary adjustment pressure over 0.07 0.8MPa) | |
| Allowable leakage amount | 0.01% or less of the rated flow rate (RP-9A type nominal diameter 80 or less is none (visual pressure gauge) | |
| End connection | JIS 20K RF flange | |
| Material body | FCD | |
| Material Valve body | C3604 / NBR baking | SUS / NBR baking |
| Material Valve seat | SUS | |
| Material Piston / Cylinder | C3604 / CAC | SUS |
| Handle or cap color | Silver | Green |
| Mounting posture | Upright mounting on horizontal piping | |
