Venn Co.

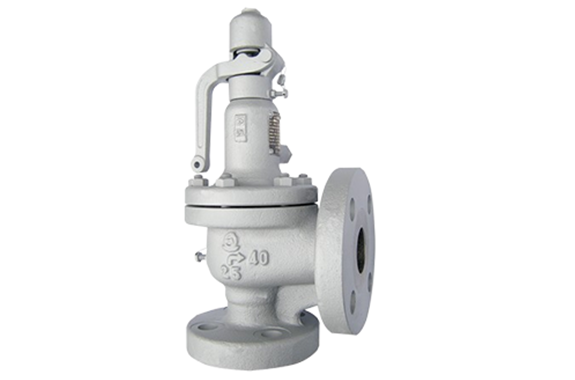

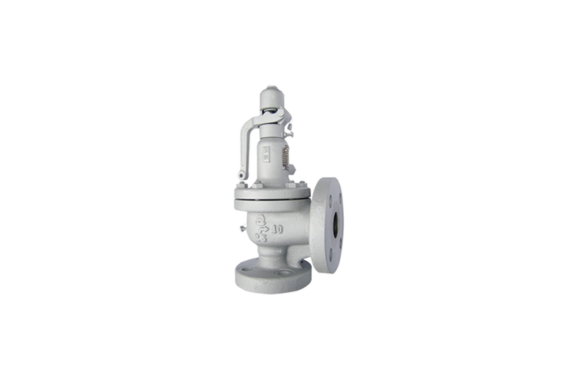

Venn SF-13 type safety valve (full volume type)
Manufacturer: Venn Co., Ltd.
Model: SF-13
Specifications
| Product code | SF13-G |
|---|---|
| format | Full quantity formula |
| Cap format | With lever |
| Nominal diameter | 25-150 (1-6) |
| Applicable fluid | air |
| Set pressure range | 0.1-1.0MPa |
| Fluid temperature | 0-220 ℃ |
| End connection | Entrance: JIS 10K FF flange (thickness depends on dimension table) Exit: JIS 10K FF flange |
| Mounting posture | Upright mounting |
| Material body | FC |
| Material Valve body | SUS or SCS |
| Material Valve seat | SUS or SCS |
