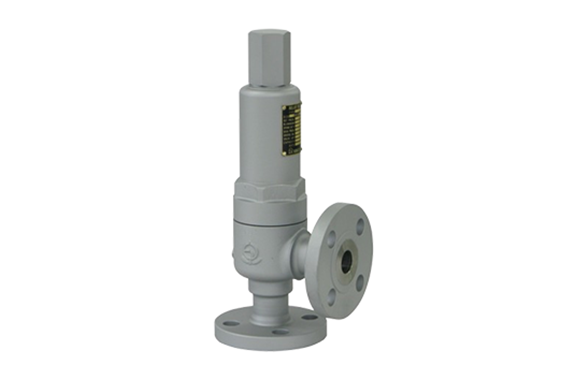

Venn SL-10ED type relief valve (for pump relief)
Manufacturer: Venn Co., Ltd.
Model: SL-10ED
Features
- The damper mechanism of the valve body suppresses the sudden movement of the valve body due to pulsating pressure and fluctuating pressure at high pressure.
- It is a back pressure balance structure that eliminates the influence of back pressure due to the piping condition on the relief valve outlet side.
Specifications
| Product code | SL10ED-N | SL10ED-D |
|---|---|---|
| format | Relief valve | |
| Cap format | No lever | |
| Nominal diameter | 15-32 (1/2-1 1/4) | |
| Applicable fluid | Water / oil / liquid | |
| Set pressure range | 0.035-3.0MPa | |
| Fluid temperature | Manufactured up to 5-80 ° C (up to 150 ° C). | |
| Maximum allowable back pressure | 1.0MPa | |
| End connection | JIS 30K RF flange | |
| Mounting posture | Upright mounting | |
| Material body | science fiction | SUS |
| Material parts | SUS | |
