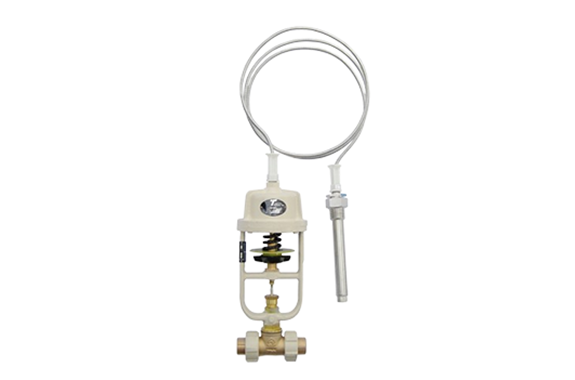

Venn TD-8 type temperature control valve
Manufacturer: Venn Co., Ltd.
Model: TD-8
Features
- Although it is a compact design, it can flow a large capacity.
- A single-seat valve with little valve leakage.
- The main part is stainless steel and has excellent durability.
Specifications
| Product code | TD8W-J | TD8G-J |
|---|---|---|
| Valve type | Temperature control valve | |
| Use | For heating | |
| type | For liquids | For gas |
| Nominal diameter | 15-40 (1/2-1 1/2) | |
| Adjusted temperature classification | 1: 40-60 ° C 2: 60-80 ° C 3: 80-100 ° C | 40-60, 50-70, 60-80, 70-90, 80-100 ° C |
| Applicable ambient temperature | Set temperature -10 ℃ or less | |
| Applicable fluid | steam | |
| Fluid to be heated (cooled) | Water / oil / liquid | gas |
| Valve type | Pressure balance type single seat | |
| Allowable leakage amount | 0.05% or less of the rated flow rate | |
| Maximum operating temperature of the main body | 184 ℃ or less | |
| Reed tube length | 2m (manufactured up to 5m) | |
| End connection | JIS Rc screw (union fitting) | |
| Thermal cylinder applicable pressure | 1.0MPa or less | |
| Valve inlet pressure limit | 0.7MPa | |
| Mounting posture | Upright mounting on horizontal piping | |
| Material body | CAC406 | |
| Material Valve body | SUS | |
| Material Valve seat | SUS | |
| Material bellows | C5212P | |
| Material Thermal cylinder | SUS304 | SUS304 (with fins) |
