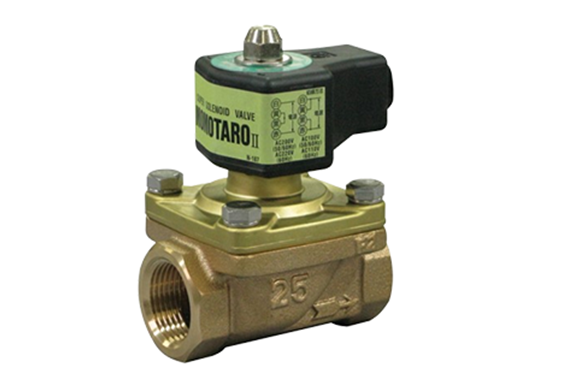

Venn WS-22 type solenoid valve (for liquids and gases)
Manufacturer: Venn Co., Ltd.
Model: WS-22
Features
- It is more than 3 times more durable than our conventional products.
- For liquids and gases.
- It can use in a wide pressure range from 0 to 1.0 MPa.
- Equipped with a water hammer mitigation mechanism.
- Vertical and horizontal mounting is free.
- The coil exterior uses thermosetting resin that is resistant to heat.
Specifications
| Product code | WS22-F |
|---|---|
| type | Diaphragm type |
| Actuation | Energized open |
| Nominal diameter | 10-50 (3 / 8-2) |
| Applicable fluid | Water / air・ Inert gas・ Oil (kerosene / light oil) |
| Fluid temperature | 5-60 ℃ |
| Fluid viscosity | 20cSt or less |
| Applicable pressure | 0-1.0MPa |
| Minimum differential pressure before and after the valve | 0MPa (0.03MPa when the coil is horizontal) |
| Allowable leakage amount | None (visual pressure gauge, when gas is 0.02 to 1.0 MPa) |
| Rated voltage | AC100 / 200V 50 / 60Hz AC110 / 220V 60Hz shared |
| Insulation type | Type B |
| Ambient temperature | 5-60 ℃ |
| Protective structure | Dust-proof / splash-proof / indoor use (When using outdoors, use the TB-03 type terminal box together.) |
| End connection | JIS Rc screw |
| Mounting posture | Horizontal / vertical (excluding the coil downward with respect to the mounting pipe) |
| Material body | CAC408 |
| Material diaphragm | NBR |
