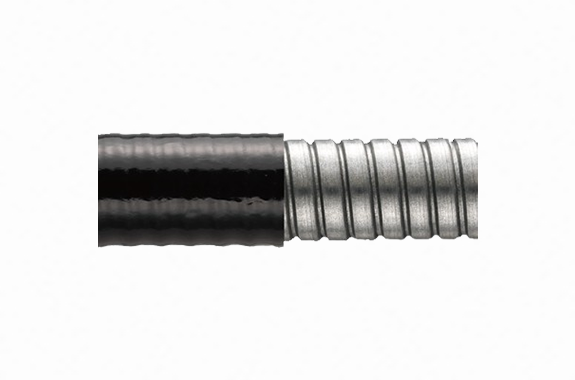

Yamato Electric Adhesive vinyl-coated flexible FCV
Manufacturer: Yamato Electric Industry Co., Ltd
Model: FCV
- The manufacturer covers this flexible conduit with oil-resistant vinyl and inserts PP packing into the joint section of the standard casing.
- The packing’s elasticity reduces stress on the casing and enables use in movable and vibrating sections.
- When connected to a dedicated connector, it ensures liquid protection equivalent to IP67. (Refer to p.12 for compatible connectors)
Operating Temperature Range: -20°C to +65°C (Cold resistance tested per JIS K 6723; reference value for fixed use)
| Model/Code | Min. Inner Diameter B | Max. Outer Diameter A | Minimum Bending Inner Radius | Weight (kg) / Roll Length (m) | ||
| Fixed | Movable | |||||
| FCV-10 | 10 | 15.5 | 40 | 77 | 11.7/50 | |
| 12 | 12.3 | 18 | 50 | 91 | 14.1/50 | |
| 16 | 15.8 | 21.3 | 60 | 114 | 18.7/50 | |
| 22 | 20.8 | 26.7 | 75 | 136 | 15.2/30 | |
| 28 | 26.4 | 33.4 | 100 | 183 | 21.2/30 | |
| 36 | 35 | 42.2 | 125 | 228 | 17.5/20 | |
| 42 | 40 | 48.3 | 150 | 275 | 18.6/20 | |
| 54 | 51.3 | 60.3 | 175 | 319 | 12.7/10 | |
| 70 | 63.5 | 76.3 | 280 | 461 | 26/10 | |
| 82 | 76.2 | 89 | 300 | 555 | 31.3/10 | |
| Material | Casing: Galvanized steel plate Coating: Soft polyvinyl chloride (PVC) | |||||
| Remarks | ||||||
Note: When ordering a connector for model 82, please refer to the ordering example on the MS listing page (P26).
