Yamato Electric Adhesive vinyl-coated semi-interflex (ultra-oil resistant) FSVH
Manufacturer: Yamato Electric Industry Co., Ltd
Model: FSVH

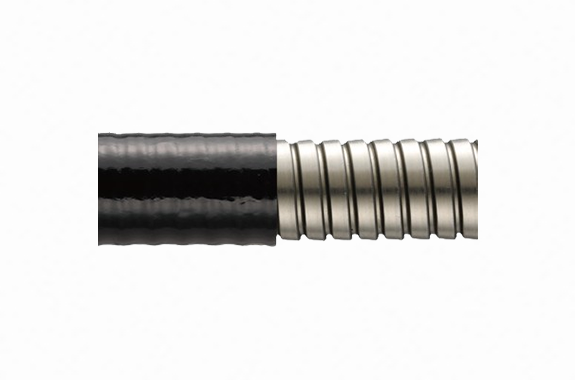

- This flexible conduit features a casing made by combining galvanized steel strip in a semi-interlock structure, tightly covered with super oil-resistant vinyl.
- Suitable for use in areas subject to frequent cutting, bending, etc.
- Also usable in sections requiring tensile and torsional strength, as well as in movable areas.
- When connected to a dedicated connector, it ensures liquid protection equivalent to IP67. (Refer to p.12 for compatible connectors)
Operating Temperature Range: –20°C to +60°C (Cold resistance tested in accordance with JIS K 6723; reference value for fixed use)
| Mode/Code | Min. Inner Diameter B | Max. Outer Diameter A | Minimum Bending Inner Radius | Weight (kg) / Roll Length (m) | |
| Fixed | Movable | ||||
| FSVH-10 | 10 | 15.5 | 65 | 119 | 9.6/30 |
| 12 | 12.3 | 18 | 70 | 141 | 11.4/30 |
| 16 | 15.8 | 21.3 | 80 | 176 | 13.8/30 |
| 22 | 20.8 | 26.7 | 110 | 211 | 18.3/30 |
| 28 | 26.4 | 33.4 | 130 | 283 | 24.9/30 |
| 36 | 35 | 42.2 | 150 | 359 | 19.6/20 |
| 42 | 40 | 48.3 | 180 | 425 | 23.1/20 |
| 54 | 51.3 | 60.3 | 210 | 494 | 13.4/10 |
| Material | Casing: Galvanized steel plate Coating: Soft vinyl chloride (super oil-resistant) | ||||
| Remarks | |||||
