Yamato Electric AYL/ YL Series 90° Angle Connector for Cables
Manufacturer: Yamato Electric Co., Ltd.
Model: AYL/ YL Series

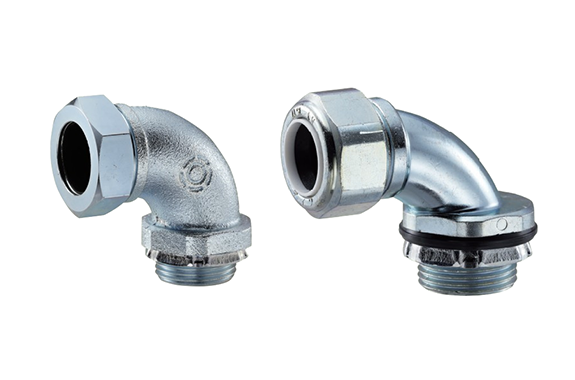

90° Angle Connector for Cables AYL YL
- This is a angle connector for cables that securely grips the cable and allows it to be pulled into boxes and similar enclosures.
- AYL comes with a seal washer attached to the connection point with boxes and similar enclosures.
- AYL’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.

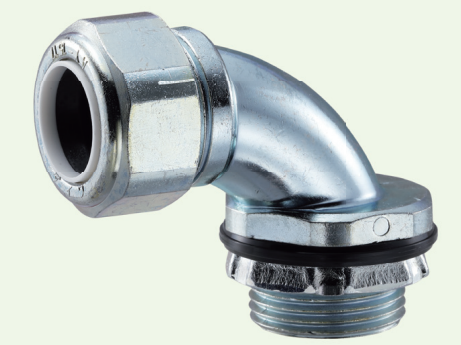

AYL Accommodated Cable Outer Diameter 2.5 to 26

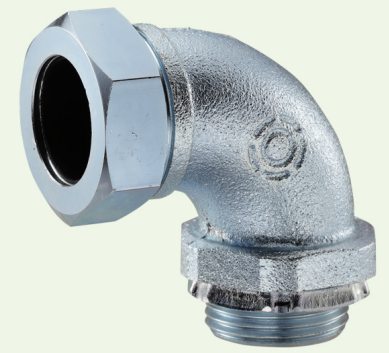

YL Accommodated Cable Outer Diameter 25 to 28
Unit: mm
| Nominal Size | Code | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

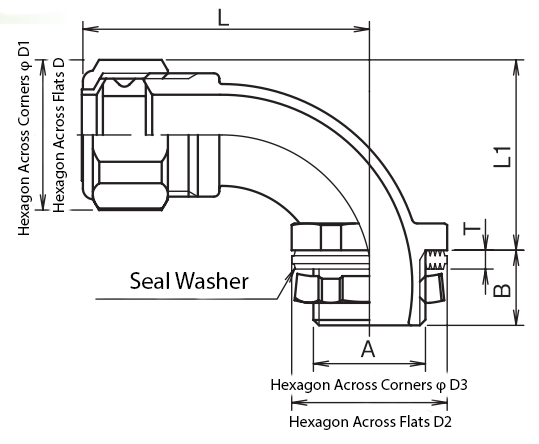

| Accommodated Cable Outer Dia | Armor Screw A | B | T | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Ring Length L | L1 | Cap Color | Mass (g) | Qty/Box | ||||||
| Conduit Pipe Thread | Thread Mounting Hole | Nominal Size | ||||||||||||||||
| AYL- 2.5〜5 | φ 2.5〜φ 5 | φ 2.5〜φ 5 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 23 | 25 | 27 | 29 | 55 | 34 | Black | 92 | 16 | ||
| AYL-5〜8 | φ 4〜φ 8.3 | φ 4〜φ 8.3 | Grey | |||||||||||||||
| AYL-9〜11 | φ 7〜φ 11.3 | φ 7〜φ 11.3 | 54 | Milky White | ||||||||||||||
| AYL-12〜14 | φ 10〜φ 14.5 | φ 10〜φ 14.5 | 26 | 28 | 53 | 35.5 | 94 | |||||||||||
| AYL-15〜17 | φ 13〜φ 17.5 | φ 13〜φ 17.5 | CTG 22 | G 3/4 | 27 | 17 | 30 | 32 | 34 | 36 | 51 | 38 | 135 | 6 | ||||
| AYL-20 | φ 16〜φ 20 | φ 16〜φ 20 | 35 | 38 | 35 | 38 | 61 | 51 | 245 | 4 | ||||||||
| AYL-23 | φ 19〜φ 23 | φ 19〜φ 23 | CTG 28 | G 1 | 34 | 18 | 4 | 41 | 44 | 44 | 47 | 66 | 57 | Grey | 356 | |||
| AYL-26 | φ 22〜φ 26 | φ 22〜φ 26 | Milky White | |||||||||||||||

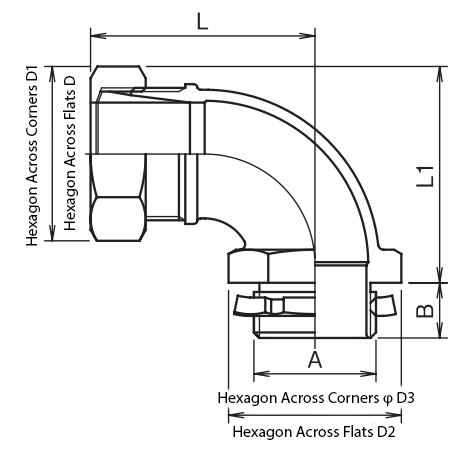

| YL-28 | φ 25〜φ 28 | φ 25〜φ 28 | 15 | 47 | 61 | 58.5 | 290 | 3 | ||||||||||
| Material | Body: AYL2.5-17 – Zinc Alloy Die-Cast, AYL20-26 & YL – Black Heart Malleable Cast Iron | |||||||||||||||||
| Remarks | Please inquire regarding the nominal size of options with springs. | |||||||||||||||||
Please inquire regarding the nominal size (or designation) of options with springs.
