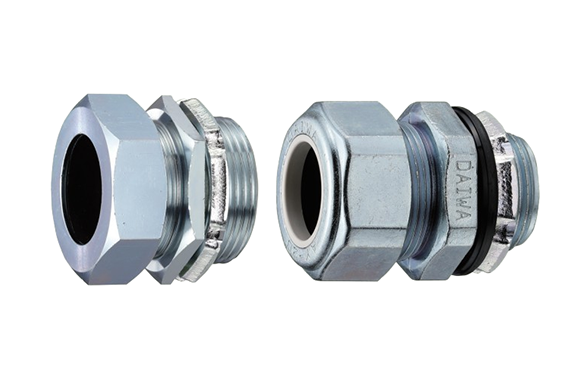

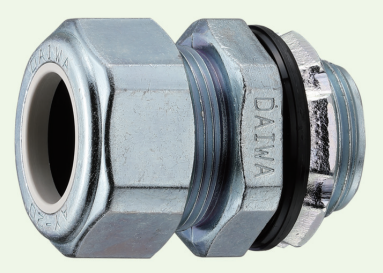

Yamato Electric AYS/ YS Series Straight Connector for Cables
Manufacturer: Yamato Electric Co., Ltd.
Model: AYS/ YS Series
Straight Connector for Cables AYS YS
- This is a cable connector that securely grips the cable and allows it to be pulled into boxes and similar enclosures.

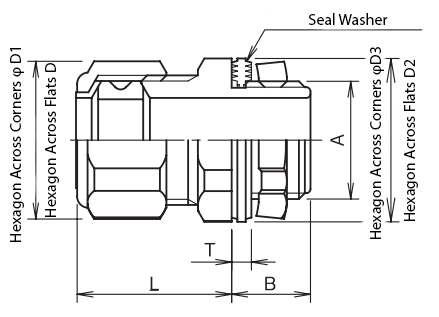

- AYS comes with a seal washer attached to the connection point with boxes and similar enclosures.
- AYS’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.
AYS Accommodated Cable Outer Diameter 2.5 to 26

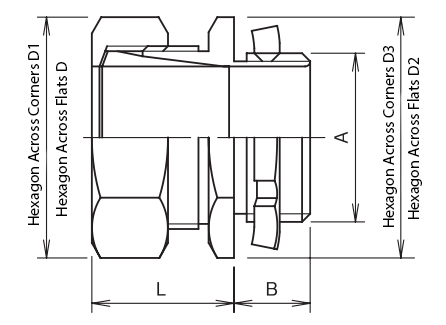

YS Accommodated Cable Outer Diameter 25 to 38
Unit: mm
| Nominal Size | Code | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Accommodated Cable Outer Dia | Armor Screw A | B | T | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Ring Length L | Cap Color | Mass (g) | Qty/Box | ||||
| Conduit Pipe Thread | Thread Mounting Hole | Nominal Size | |||||||||||||
| AYS- 2.5〜5 | φ 2.5〜φ 5 | φ 2.5〜φ 5 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 23 | 25 | 27 | 29 | 29 | Black | 66 | 25 |
| AYS-5〜8 | φ 4〜φ 8.3 | φ 4〜φ 8.3 | Grey | ||||||||||||
| AYS-9〜11 | φ 7〜φ 11.3 | φ 7〜φ 11.3 | 28 | Milky White | |||||||||||
| AYS-12〜14 | φ 10〜φ 14.5 | φ 10〜φ 14.5 | 26 | 28 | 27 | 67 | |||||||||
| AYS-15〜17 | φ 13〜φ 17.5 | φ 13〜φ 17.5 | CTG 22 | G 3/4 | 27 | 17 | 30 | 32 | 34 | 36 | 28 | 106 | 16 | ||
| AYS-20 | φ 16〜φ 20 | φ 16〜φ 20 | 35 | 38 | 35 | 38 | 33 | 133 | |||||||
| AYS-23 | φ 19〜φ 23 | φ 19〜φ 23 | CTG 28 | G 1 | 34 | 18 | 4 | 41 | 44 | 44 | 47 | 37 | Grey | 202 | 8 |
| AYS-26 | φ 22〜φ 26 | φ 22〜φ 26 | Milky White | 200 | |||||||||||
| YS-28 | φ 25〜φ 28 | φ 25〜φ 28 | 15 | 47 | 41 | 28 | 169 | 9 | |||||||
| YS-30 | φ 28〜φ 30 | φ 28〜φ 30 | CTG 36 | G 1 1/4 | 42 | 18 | 46 | 53 | 46 | 53 | 284 | ||||
| YS-33 | φ 30〜φ 33 | φ 30〜φ 33 | 232 | ||||||||||||
| YS-35 | φ 33〜φ 35 | φ 33〜φ 35 | 197 | 8 | |||||||||||
| YS-38 | φ 35〜φ 38 | φ 35〜φ 38 | CTG 42 | G 1 1/2 | 48 | 52 | 60 | 52 | 60 | 31 | 270 | 5 | |||
| Material | Body: AYS – Zinc Alloy Die-Cast, YS – Brass Rod, Galvanized Cast Iron | ||||||||||||||
| Remarks | |||||||||||||||
