Yamato Electric B Series Insulating Bushing
Manufacturer: Yamato Electric Co., Ltd.
Model: B Series

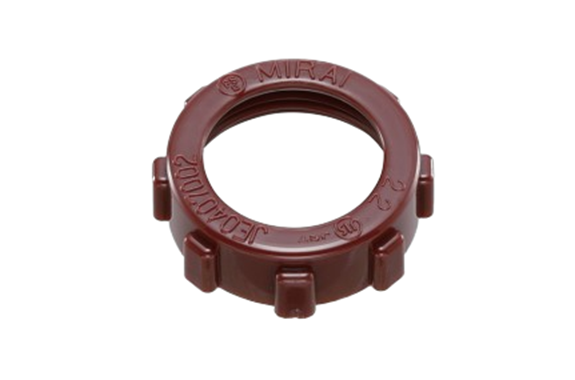

Insulating Bushing B
Used for end protection of connectors and piping (conduits), it prevents scratches and damage to insulated wires that occur during wiring installation.

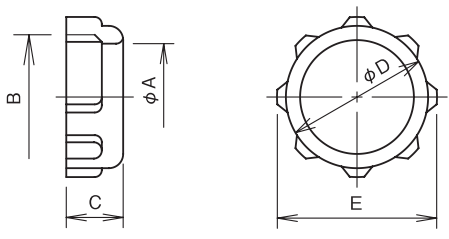

For Thick-Wall Steel Conduit Thread Unit: mm
| Nominal Size | A | B | C | D | E | |
|---|---|---|---|---|---|---|
| B-16R | 16 | G 1/2 | 9 | 25 | 29 | |
| 22 | 21.5 | G 3/4 | 10 | 31 | 34 | |
| 28 | 27.5 | G 1 | 12 | 38.5 | 41.5 | |
| 36 | 36 | G 1 1/4 | 13 | 47.5 | 51 | |
| 42 | 42 | G 1 1/2 | 15 | 53.5 | 57.5 | |
| 54 | 53 | G 2 | 16 | 66.5 | 71 | |
| 70 | 68 | G 2 1/2 | 18 | 83 | 88 | |
| Material | Polycarbonate | |||||
| Remarks | Azuki Color | |||||
For Thin-Wall Steel Conduit Thread Unit: mm
| Nominal Size | A | B | C | D | E | |
|---|---|---|---|---|---|---|
| B-19 | 15.5 | CTC 19 | 9 | 23.5 | 26 | |
| 25 | 21.5 | CTC 25 | 10 | 31 | 34 | |
| 31 | 28 | CTC 31 | 12 | 37 | 40.5 | |
| 39 | 34 | CTC 39 | 13 | 43.5 | 47.5 | |
| 51 | 46.5 | CTC 51 | 15 | 57.5 | 62 | |
| 63 | 58.5 | CTC 17 | 17 | 71 | 76 | |
| Material | Polycarbonate | |||||
| Remarks | Amber Color | |||||
