Manufacturer: Yamato Electric Co., Ltd.
Model: FCV Series

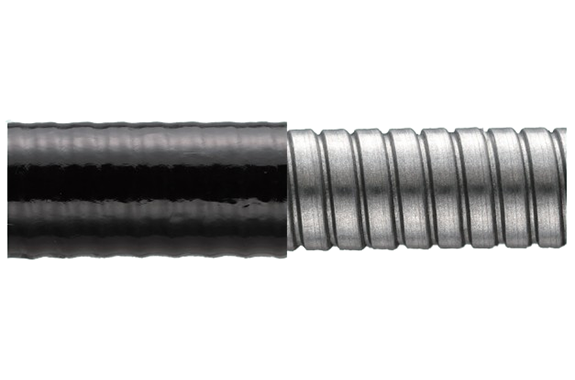

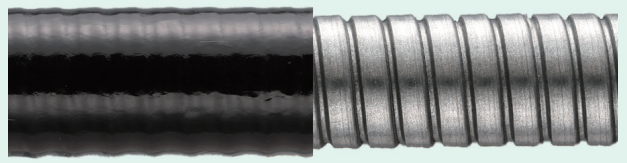

Sealed-Type Vinyl Coated Flexible Conduit FCV

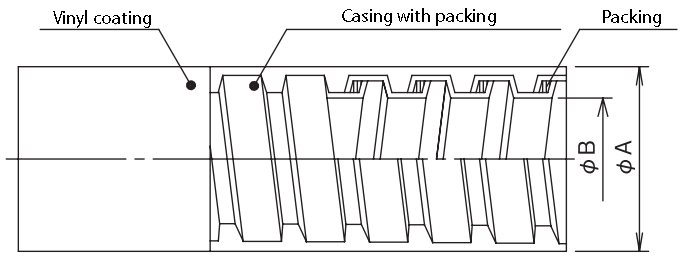

• This is a flexible conduit with a sealed, oil-resistant vinyl coating and a structure that includes a PP packing in the interlocking part of the standard casing.
• The elasticity of the packing reduces the stress on the casing, making it suitable for wide use in movable and vibrating parts.
• Liquid-proofing (equivalent to IP67) can be ensured by connecting it to a flexible conduit connector. (Refer to the flexible conduit and connector compatibility table on P12)

Operating Temperature Range: -20°C to +65°C (The cold resistance temperature is test data compliant with JIS K 6723 and is a reference value for when the product is used in a fixed state.)

Vinyl color: black

Unit: mm

Notes: When ordering a connector for nominal size 82, please refer to the ordering example on the MS publication page (P26).
