Yamato Electric Flexible saddle CH
Manufacturer: Yamato Electric Industry Co., Ltd
Model: CH

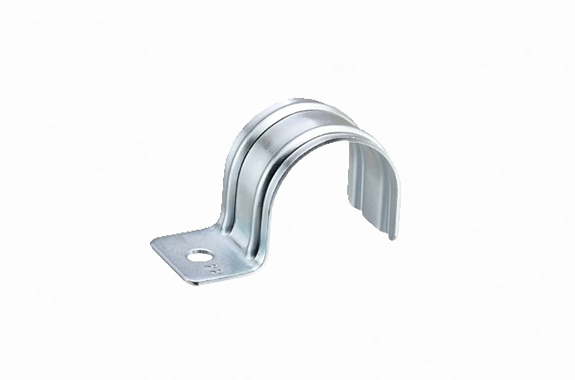

- This is a steel saddle plate designed to fit the outer diameter of flexible conduits.
- It can also be used to secure pipes and cables.
- For sizes 6 to 28, there is also a series with a mounting hole diameter (D) of 6.2 mm.
- The minimum sales unit is by the bag.
CH

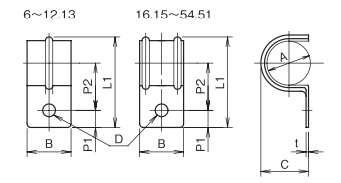

| Model No./Nominal Size | A | B | C | D | P1 | P2 | L | t | Weight per Bag (g) | Quantity per Bag (pcs) |
| CH- 6 | 11 | 14 | 12 | 5.2 | 7 | 14 | 28.5 | 0.8 | 335 | 100 |
| 10 | 15.5 | 16 | 17 | 18 | 35 | 1 | 685 | |||
| 12.13 | 18 | 18 | 19.5 | 19.3 | 37 | 863 | ||||
| 16.15 | 21.5 | 20 | 23 | 20.5 | 40.5 | 519 | 50 | |||
| 22 | 26.5 | 22 | 28.5 | 24.8 | 46.5 | 680 | ||||
| 28 | 33.5 | 30 | 35 | 27.1 | 54 | 1.2 | 1386 | |||
| 36 | 42 | 44 | 6.2 | 33 | 63.5 | 1.4 | 792 | 20 | ||
| 42 | 48.5 | 35 | 50.5 | 36 | 71 | 1062 | ||||
| 54.51 | 60 | 40 | 62 | 45 | 84.5 | 72 | 1 | |||
| Material | Rolled Steel Plate | |||||||||
| Remarks | ||||||||||
CH- -6.2
| Model No./Nominal Size | A | B | C | D | P1 | P2 | L | t | Weight per Bag (g) | Quantity per Bag (pcs) |
| CH- 6 -6.2 | 11 | 14 | 12 | 6.2 | 7 | 14 | 28.5 | 0.8 | 350 | 100 |
| 10 -6.2 | 15.5 | 16 | 17 | 18 | 35 | 1 | 640 | |||
| 12.13-6.2 | 18 | 18 | 19.5 | 19.3 | 37 | 850 | ||||
| 16.15-6.2 | 21.5 | 20 | 23 | 20.5 | 40.5 | 530 | 50 | |||
| 22 -6.2 | 26.5 | 22 | 28.5 | 24.8 | 46.5 | 680 | ||||
| 28 -6.2 | 33.5 | 30 | 35 | 27.1 | 54 | 1.2 | 1358 | |||
| Material | Rolled Steel Plate | |||||||||
| Remarks | ||||||||||
