Yamato Electric FSN Series Uncoated Semi-Interlocking Flexible Conduit
Manufacturer: Yamato Electric Co., Ltd.
Model: FSN Series

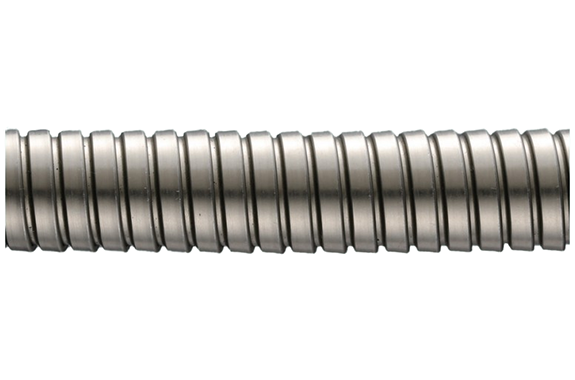

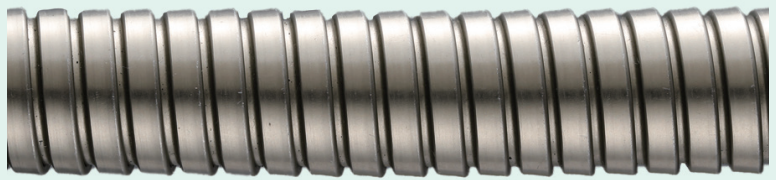

Uncoated Semi-Interlocking Flexible Conduit FSN

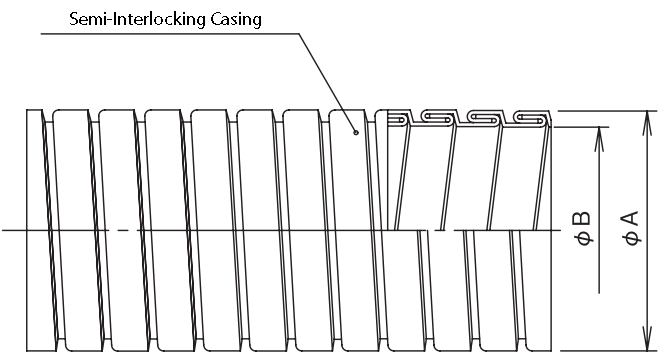

- This is a flexible conduit with only a casing made of a galvanized steel strip fitted in a semi-interlocking structure.
- It is mainly for simple piping, but can also be used in locations requiring tensile and torsional strength.
Unit: mm
| Symbol | ||||||
|---|---|---|---|---|---|---|
| Nominal Size | Internal/External Diameter (mm) | Minimum Bending Radius (mm) | Mass (kg) / Length (m) | |||
| Min. Internal Dia. (B) | Max. External Dia. (A) | Fixed | Moving | |||
| FSN-10 | 10 | 13.2 | 55 | 75 | 7 / 30 | |
| 12 | 12.3 | 16.1 | 60 | 80 | 8.5 / 30 | |
| 16 | 15.8 | 19.2 | 70 | 95 | 9.8 / 30 | |
| 22 | 20.8 | 24.5 | 90 | 120 | 13 / 30 | |
| 28 | 26.4 | 30.6 | 110 | 140 | 19.5 / 30 | |
| 36 | 35 | 39.5 | 120 | 160 | 13.8 / 20 | |
| 42 | 40 | 44.8 | 150 | 200 | 17 / 20 | |
| 54 | 51.3 | 56.5 | 180 | 240 | 11.4 / 10 | |
| 70 | 63.5 | 71 | 240 | 300 | 18.1 / 10 | |
| 82note | 76.2 | 82.5 | 280 | 370 | 22.1 / 10 | |
| Material: Casing: Galvanized steel sheet | ||||||
| Notes: | ||||||
Notes: When ordering a connector for nominal size 82, please refer to the ordering example on the MS publication page (P26). Stainless steel is also available. (Made-to-order product)
