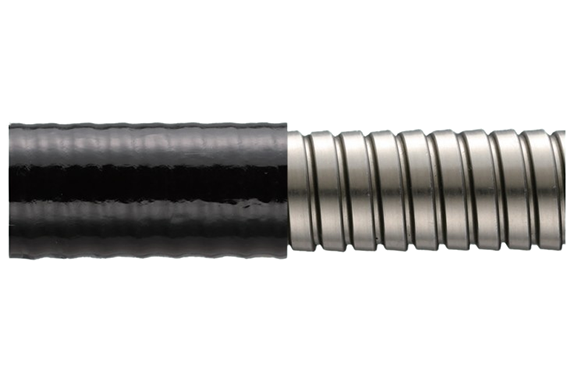

Yamato Electric FSVH Series Sealed-Type Vinyl Coated Semi-Interlocking Flexible Conduit (Super Oil-Resistant)
Manufacturer: Yamato Electric Co., Ltd.
Model: FSVH Series
Sealed-Type Vinyl Coated Semi-Interlocking Flexible Conduit (Super Oil-Resistant) FSVH

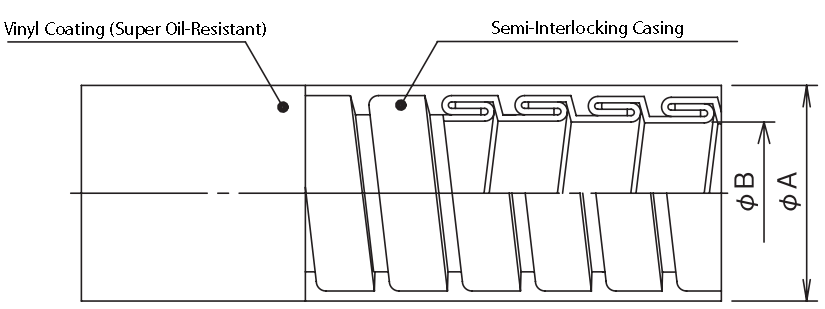

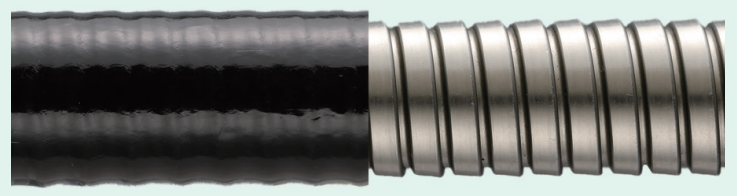

- This is a flexible conduit with a sealed, super oil-resistant vinyl coating and a casing made of a galvanized steel strip fitted in a semi-interlocking structure.
- It is suitable for use in locations where cutting oil frequently comes into contact.
- It can be used in locations requiring tensile and torsional strength, as well as for movable parts.
- By connecting it to a flexible conduit connector, liquid-proofing (equivalent to IP67) can be ensured. (Refer to the flexible conduit and connector compatibility table on P12)
Operating Temperature Range: -20°C to +60°C (The cold resistance temperature is test data compliant with JIS K 6723 and is a reference value for use in a fixed state.)
Vinyl color: black
Unit: mm
| Symbol | ||||||
|---|---|---|---|---|---|---|
| Nominal Size | Internal/External Diameter (mm) | Minimum Bending Radius (mm) | Mass (kg) / Length (m) | |||
| Min. Internal Dia. (B) | Max. External Dia. (A) | Fixed | Moving | |||
| FSVH-10 | 10 | 15.5 | 65 | 119 | 9.6 / 30 | |
| 12 | 12.3 | 18 | 70 | 141 | 11.4 / 30 | |
| 16 | 15.8 | 21.3 | 80 | 176 | 13.8 / 30 | |
| 22 | 20.8 | 26.7 | 110 | 211 | 18.3 / 30 | |
| 28 | 26.4 | 33.4 | 130 | 283 | 24.9 / 30 | |
| 36 | 35 | 42.2 | 150 | 359 | 19.6 / 20 | |
| 42 | 40 | 48.3 | 180 | 425 | 23.1 / 20 | |
| 54 | 51.3 | 60.3 | 210 | 494 | 13.4 / 10 | |
| Material: Casing: Galvanized steel sheet; Coating: Soft polyvinyl chloride (Super Oil-Resistant) | ||||||
| Notes: | ||||||
Notes: Stainless steel is also available. (Made-to-order product)
