Yamato Electric Han Series Industrial Multi-pole Connectors

Manufacturer: Yamato Electric Co., Ltd.
Model: Han Series

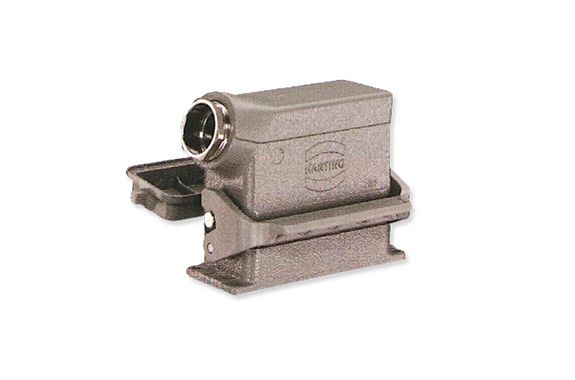

Han Industrial Multi-pole Connectors

Manufactured by HARTING Co., Ltd.

HARTING’s heavy-duty connectors are widely used in all kinds of industrial equipment, such as railway vehicles, communication devices, various machinery, and manufacturing equipment, and exhibit unchanging performance even under harsh conditions, gaining great trust.
Han connectors, which have received standard certifications in various countries around the world, are guaranteed to have low contact resistance, high vibration resistance, and excellent temperature stability.
Since on-site wiring work is unnecessary, the number of installation work steps/hours can be significantly reduced.
Although sold as a set product, delivery will be made per individual component/part.

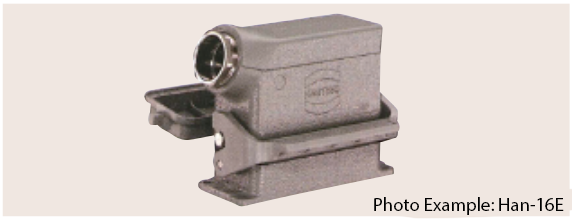

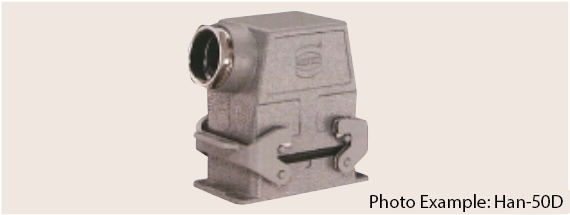

Han E Type (6～48 Poles)	Han D Type (15～128 Poles)
The E type is specified to directly fasten the wire with a screw, making wiring work simple.	The D type is specified to crimp and fix contacts onto the wire. ※A dedicated crimping tool is required.

	Connectors/Cable Seals/Clamps Straight $\text{Pg}$ Connector for Flexible Conduit For Hood/Housing Cable Seal Universal Cable Clamp Special Cable Clamp
	Hoods Standard or High Hood Top or Side Entry (1 location) For 1 or 2 Locking Levers
	Male Inserts Screw Terminal Crimp Terminal Cable Clamp Terminal
	Female Inserts Screw Terminal Crimp Terminal Cable Clamp Terminal
	Housings For Panel Mounting With 1 or 2 Locking Levers Box Type Standard or High Housing With or without Protection Cover (Made of Metal, Thermoplastic) With 1 or 2 Locking Levers Side Entry (1 or 2 locations) Hood (Cable-to-Cable Coupling Type) Standard or High Hood Top Entry 1 location
The photo is an example for reference. The shape may vary depending on the combination. (The above photo is Han-25D)

Han Industrial Multi-pole Connectors

Model Type	Han E	Han 6HsB	Han 32A	Han D
Number of Poles	6, 10, 16, 24, 48P	6P	32P	15, 25, 40, 50, 64, 128P
Rated Current	16A	35A	10A	10A
Rated Voltage	AC380V DC450V	AC380V DC450V	AC380V DC450V	AC250V DC300V
Withstanding Voltage	4.5KV RMS	4.5KV RMS	3.5KV RMS	2KV RMS
Contact Resistance	1.3m Ω			3m Ω
Connection Method	Screw Terminal Type			Crimp Terminal Type
Specified Wire	2.5mm² or less, Earth Terminal Type
Outer Housing Material	Aluminum Alloy Die-cast
Remarks / Notes	Waterproof Type

Unit: mm

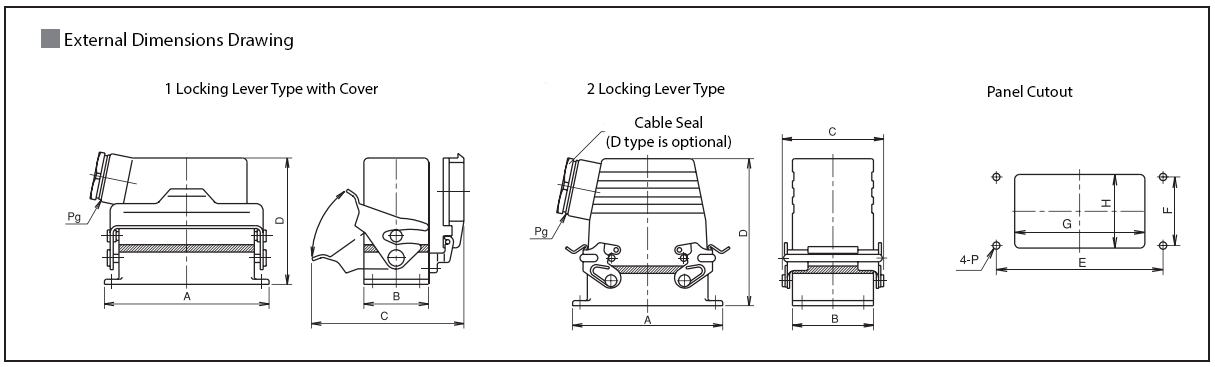

Designation	External Dimensions				Panel Cutout Dimensions					PG Screw Designation	Standard Specification
Designation	A	B	C	D	E	F	G	H	P	PG Screw Designation	Standard Specification
6E	80	43.5	93	71.5	70	32	48	35	4.4	13.5	1 Locking Lever with Cover
10E	93	43.5	93	85.5	83	32	60	35	4.4	16	//
16E	113	43.5	93	91	103	32	82	35	4.4	21	//
24E	140	43.5	93	91	130	32	108	35	4.4	21	//
32E	124	90	95	127	110	65	86	71	5.5	29	2 Locking Levers
48E	165	96	163	138	148	70	117	81	6.4	42	1 Locking Lever with Cover
6HsB	113	43.5	93	91	103	32	82	35	4.4	21	//
32A	102	56	69	108	92	42	73	48	4.4	29	2 Locking Levers
15D	81	29	※51	93.5	70	17.5	57	24	3.4	16	1 Locking Lever
25D	96	29	※51	96.5	86	17.5	73	24	3.4	21	//
40D	113	43	58	104.5	103	32	82	35	4.4	29	2 Locking Levers
50D	102	56	69	108	92	42	73	48	4.4	29	//
64D	140	43	58	104.5	130	32	108	35	4.4	29	//
128D	165	96	163	138	148	70	117	81	6.4	42	1 Locking Lever with Cover
Material	Outer Housing: Aluminum Alloy Die-cast
Remarks / Notes	Above are dimensions for the standard set. ※ indicates dimensions excluding the cover.
