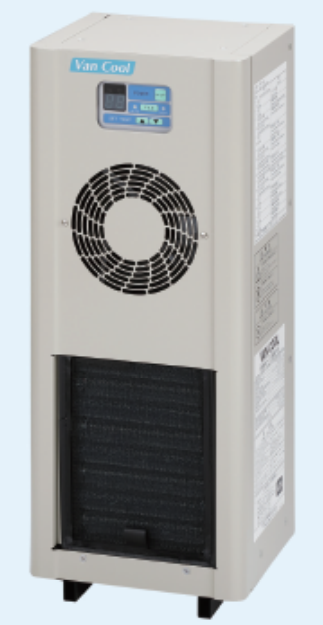

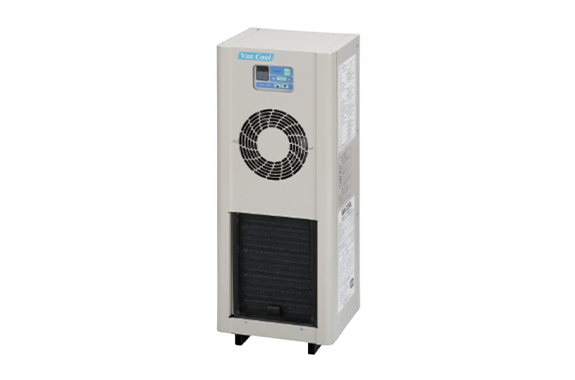

Yamato Electric KCS-03EB Side Mounting Type/ Non-Drain Model
Manufacturer: Yamato Electric Co., Ltd.
Model: KCS-03EB
Control Panel Cooler – Non-Drain Model
Equipped with the unique, highly efficient, and dirt-resistant “Spine Fin”!
Features
- High efficiency and space-saving achieved through the adoption of the Spine Fin design.
- Features excellent energy-saving performance due to a high COP value (Coefficient of Performance/Energy Efficiency).
- An operation panel relocation kit is available as an option to enable control panel operation at a remote location.
Proprietary non-drain model. Balances ecology (eco-friendliness) and high-efficiency cooling.

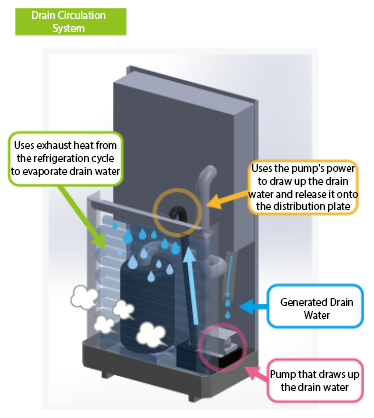

Cooling efficiency of the cooler is significantly improved (Eco Mode) by using a heat exchanger with high water retention capacity (Spine Fin) and effectively utilizing the air conditioner exhaust heat. Improved evaporation performance through a drain circulation system.
Features List (Available features vary by model)
 |  |  |  |
| Maintenance Notification Function | Refrigerant Pressure Abnormality Alarm | Frost/Freezing Prevention Function | Temperature Sensor Abnormality Alarm |
|---|---|---|---|
| Displays a filter check output signal at set intervals. | If the refrigerant pressure rises due to filter clogging or other issues, the unit stops abnormally and the alarm contact is activated. | Automatically stops to prevent frost growth on the evaporator. | The unit stops and the alarm contact is activated if there is an abnormality in the panel internal temperature sensor or the evaporator temperature sensor. |
 |  |  | |
| Panel Internal Temperature Abnormality Display | Overload Protection Device | Non-Drain | |
| An abnormality is displayed if the panel internal temperature reaches the set temperature plus 10°C or higher. | If the compressor continues to operate under an overload condition, the protection device automatically stops the compressor. | Drain water is forcibly evaporated using the heat from the compressor and condenser within the refrigerant circuit. |
V.AN COOL (Side Mounting) Non-Drain Type KCS-03EB
Cooling Capacity: 240/260 W
| | | | | | |
| Maintenance Notification Function | Refrigerant Pressure Abnormality Alarm | Frost/Freezing Prevention Function | Temperature Sensor Abnormality Alarm | Panel Internal Temperature Abnormality Display | Overload Protection Device | Non-Drain |
|---|

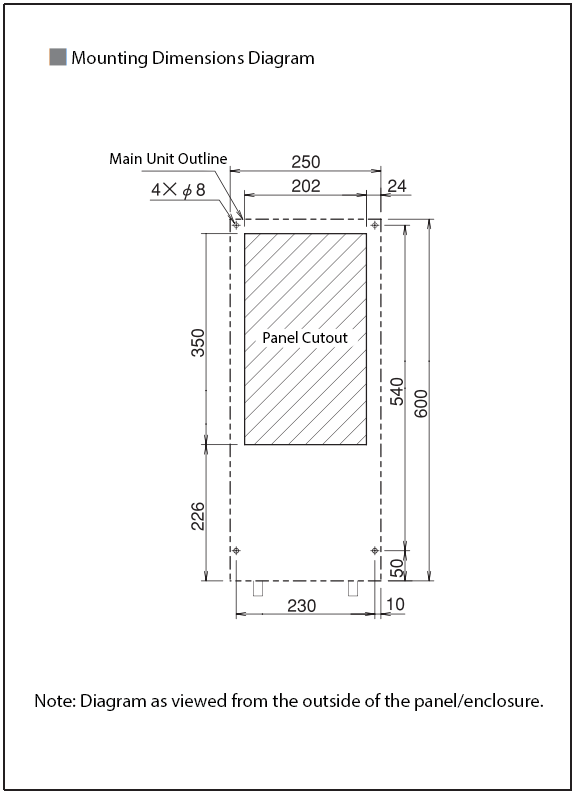

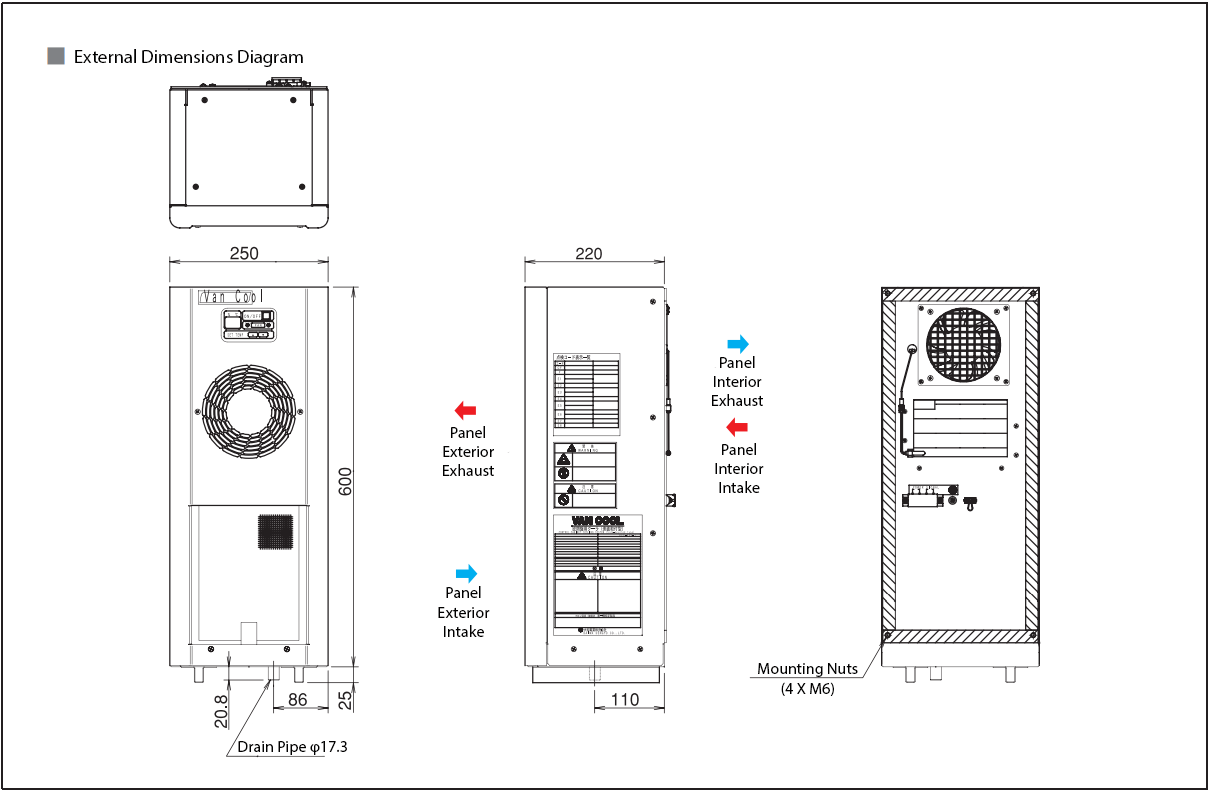

Specifications
| Mounting Method | Side Mounting | |
|---|---|---|
| Model | KCS-03EB-1 | KCS-03EB-2 |
| Cooling Capacity Note 1 (W) | 240 / 260 | 240 / 260 |
| Power Source (Single Phase) | 100 | 200 |
| Power Consumption Note 1 (W) | 200 / 210 | 200 / 210 |
| Operating CurrentNote 1 (A) | 2.4 / 2.2 | 1.2 / 1.1 |
| Starting Current Note 1 (A) | 6.5 / 6.0 | 3.0 / 2.8 |
| Recommended Leakage Breaker Capacity Note 2 (A) | 5 | |
| Operating Noise (dBA) | 61 / 65 | |
| Refrigerant (Sealed Amount) (g) | R-134a (90) | R-134a (105) |
| Panel Internal Temp. Setting Range (°C) | 25 ~ 50 | |
| Ambient Temperature Range (°C) | 25 ~ 50 | |
| Operating Humidity Range (%) | 85 以下 | |
| External Dimensions (W × H × D) (mm) | 250 × 600 × 220 | |
| Mass (kg) | 16 | |
| Main Body Coating Color | 5Y7/1 | |
| Accessories | Mounting Bolts (M}6 × 16L) · 4 pcs Drain Hose (2m) · 1 pc Hose Clamp · 1 pc | |
Note 1: Cooling capacity is the rated value at: Control Panel internal dry bulb temp 35°C, wet bulb temp 24°C, and Control Panel external dry bulb temp 35°C. Cooling capacity is based on Technical Document No. 007 of the Industrial Association of Thermal Equipment for Control Panels.
Note 2: Rated sensitivity current 15mA.
The values indicated by / are 50Hz on the left and 60Hz on the right.

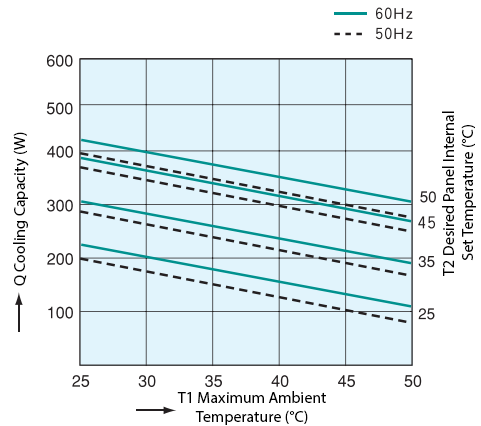

Cooling Performance Characteristics Graph
| Side Mounting KCS-03EB |
|---|
|
※Be sure to read the “Instruction Manual” before use, and use the product correctly and safely.

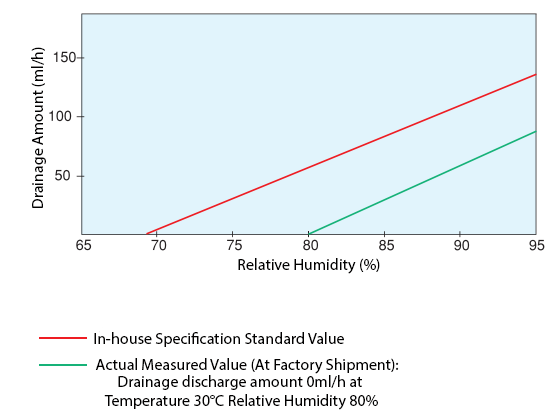

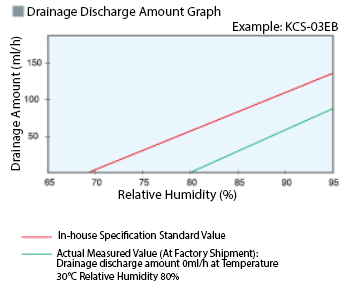

Drainage Discharge Amount Graph
