Manufacturer: Yamato Electric Co., Ltd.

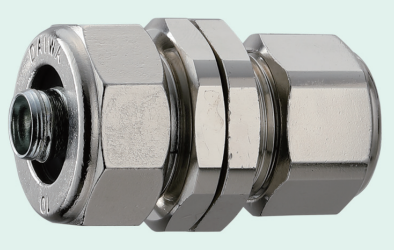

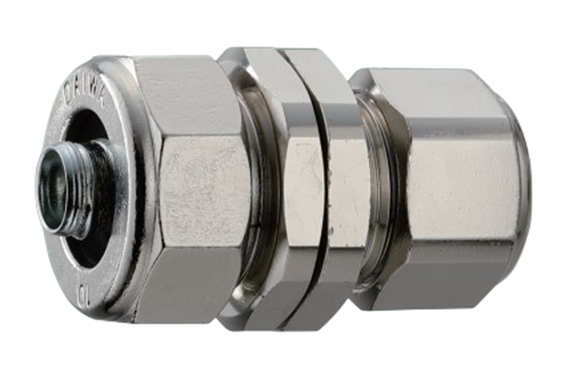

Model: MS-10×AY-8

• This is a connector that can provide flexible conduit protection for a cable within an arbitrary range.
• It can ensure fluid-tightness at the cable pull-out opening at the end of the flexible conduit without using a junction box.
• Since it comes with a lock nut, the connector can be fixed at any arbitrary position.
• Waterproof/Dustproof Construction: IP67 Protection Rating (Refer to the P12 Flexible Conduit and Connector Compatibility Table).

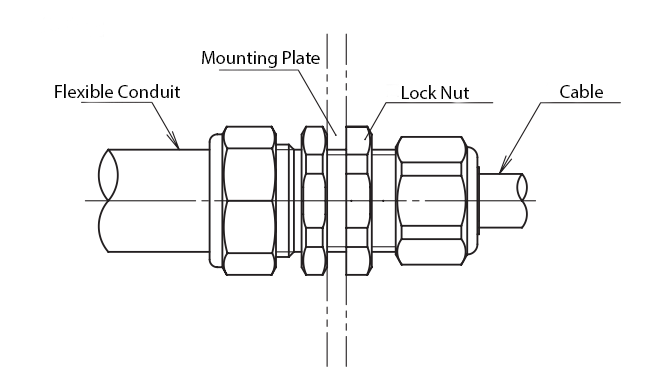

■ Assembly Example
