Yamato Electric

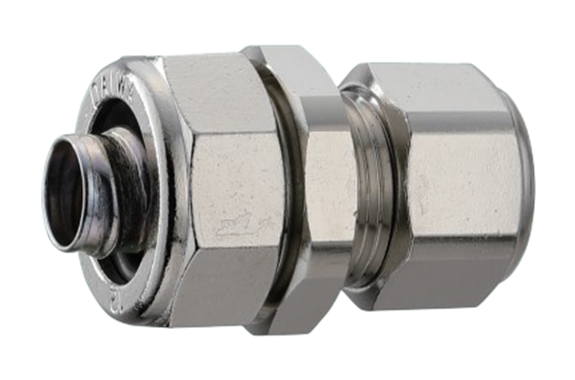

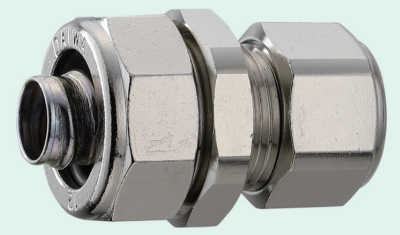

Yamato Electric MS-12×AY Cable Clamp Connector (Without Lock Nut)
Manufacturer: Yamato Electric Co., Ltd.
Model: MS-12×AY
- This is a connector that can provide flexible conduit protection for a cable within an arbitrary range.
- It can ensure fluid-tightness at the cable pull-out opening at the end of the flexible conduit without using a junction box.
- Waterproof/Dustproof Construction: IP67 Protection Rating (Refer to the P12 Flexible Conduit and Connector Compatibility Table).
| Model Name | Applicable Flexible Conduit Size | Cable Outer Diameter Range | Color of Umbrella Ring | Mass (g) | Quantity per Box |
|---|---|---|---|---|---|
| MS-12×AY-8 | 12 | φ4〜8.3 | Gray | 80 | 25 |
| 12×AY-11 | 12 | φ7〜10.5 | Milky White | 79 | 25 |
| Material | Body: Brass | ||||
| Remarks | |||||
