Yamato Electric
Yamato Electric MS-M Series Metal Thread Straight Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MS-M Series
Metal Thread Straight Connector MS-M
- The connector is suitable for connecting to small servo motors and other electrical wiring outputs.
- It does not include seal packing or lock nuts.
- Liquid and flame-resistant construction: The flange connector’s connection part is protected at IP67 level (P12 flange and connector compatibility as per the standard).

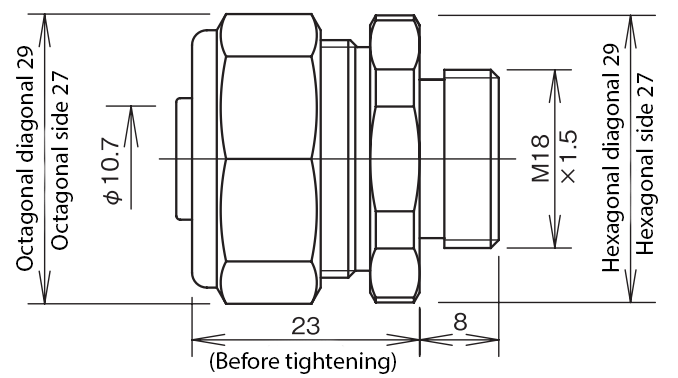

MS-12-M18×1.5
| Material | Body: Yellow Copper Rod |
|---|---|
| Weight | 54 g |
| Quantity per Box | 25 pieces |
| Remarks |

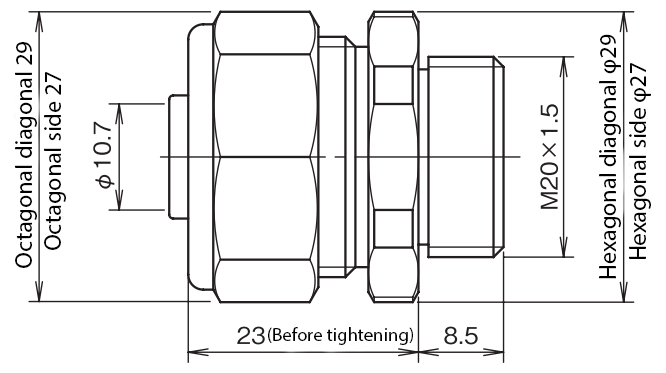

MS-12-M20×1.5
| Material | Main body: Brass rod |
|---|---|
| Weight | 56 g |
| Quantity per box | 25 pieces |
| Remarks |

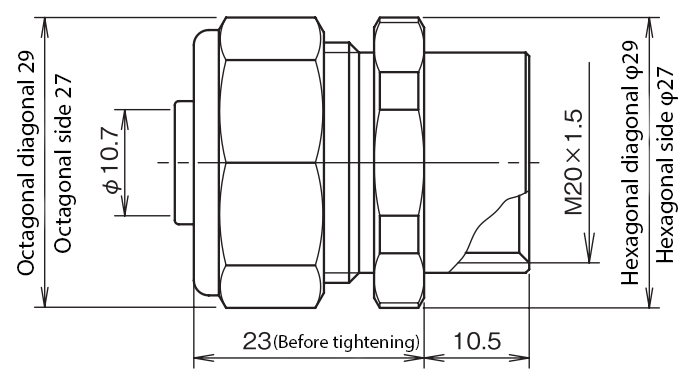

MS-12-M20×1.5F
| Material | Main body: Brass rod |
|---|---|
| Weight | 56 g |
| Quantity per box | 25 pieces |
| Remarks |
