Yamato Electric PSG Series Straight Hiflex Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: PSG Series

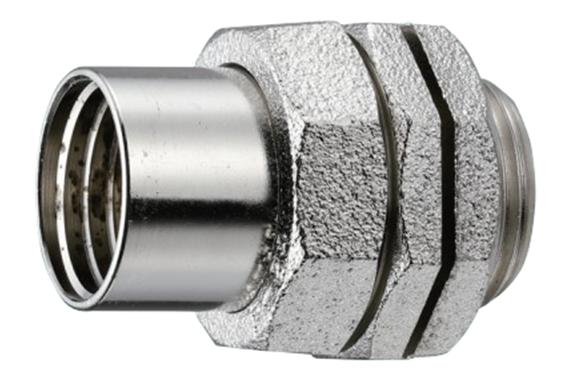

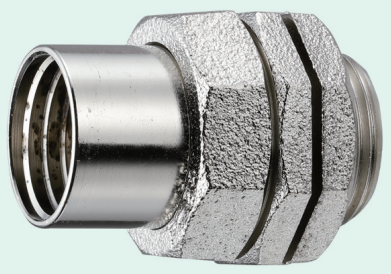

Straight Hiflex Connector PSG
- This is a straight connector for connecting control panels and Hiflex PT flexible conduits.
- It uses a union method where the body and cap are tightened with a cover nut, which makes installation work easy.

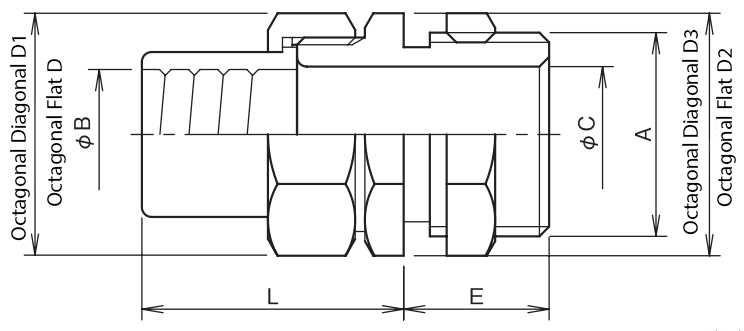

Unit: mm
| Symbol | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Name | Thick Wall Thread A | B | C | E | L | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Mass (g) | Quantity per Bag (pcs) | ||
| Conduit Thread Name | Piping Thread Name | Recommended Mounting Hole | |||||||||||
| PSG-10 | CTG 16 | G 1/2 | 21 | 13.4 | 14 | 15 | 28 | 25 | 25 | 27 | 27 | 58 | 25 |
| PSG-12 | CTG 16 | G 1/2 | 21 | 16.2 | 14 | 15 | 28 | 27 | 27 | 29 | 29 | 58 | 25 |
| PSG-15 | CTG 16 | G 1/2 | 21 | 19.1 | 14.5 | 15 | 30 | 30 | 30 | 32 | 32 | 86 | 20 |
| PSG-17 | CTG 22 | G 3/4 | 27 | 21.6 | 20 | 18 | 35 | 36 | 36 | 39 | 39 | 142 | 16 |
| PSG-24 | CTG 28 | G 1 | 34 | 28.9 | 24 | 18 | 42.5 | 45 | 45 | 48 | 48 | 264 | 7 |
| PSG-30 | CTG 36 | G 1 1/4 | 42 | 35 | 33 | 22 | 53 | 57 | 57 | 61 | 61 | 500 | 4 |
| PSG-38 | CTG 42 | G 1 1/2 | 48 | 43 | 38 | 30 | 56 | 64 | 64 | 69 | 69 | 626 | 3 |
| PSG-50 | CTG 54 | G 2 | 60 | 55 | 49 | 30 | 64 | 78 | 78 | 84 | 84 | 960 | 2 |
| PSG-63 | CTG 70 | G 2 1/2 | 76 | 69.5 | 64 | 30 | 72 | 96 | 96 | 103 | 103 | 1548 | 1 |
| PSG-76 | CTG 82 | G 3 | 88 | 83 | 76 | 30 | 77 | 108 | 108 | 116 | 116 | 1766 | 1 |
| Material | Body: Zinc Alloy Die-Cast, Black Malleable Iron | ||||||||||||
| Remarks | |||||||||||||
