Yamato Electric PTV Series Vinyl Sheath Hiflex (JIS C 8309 Class 2 Metal Flexible Conduit)
Manufacturer: Yamato Electric Co., Ltd.
Model: PTV Series

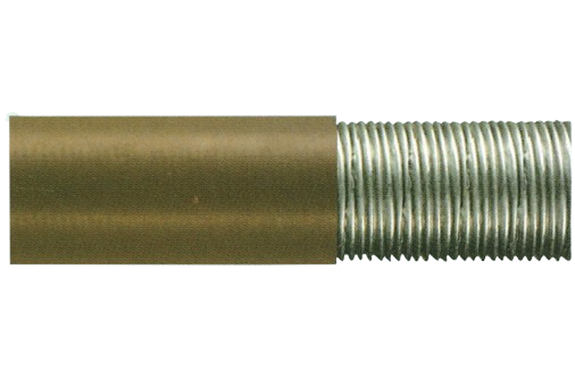

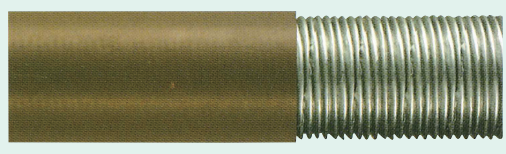

Vinyl Sheath Hiflex PTV ( Class Metal Flexible Conduit)
- Vinyl sheathing is applied to the surface of the PT (conduit) to provide fluid-tightness (water resistance).
- Exclusive connectors are available. Please inquire for details.
Operating Temperature Range: −15∘C ~ +60∘C
Unit: mm
| Symbol | |||||
|---|---|---|---|---|---|

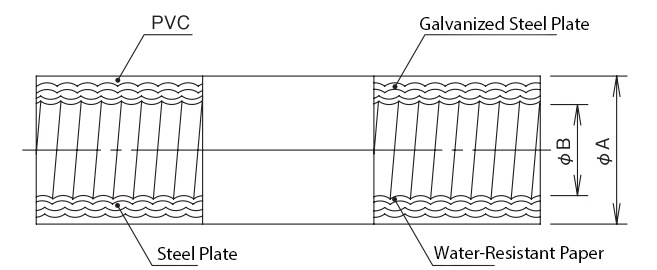

| Model Name | Inner Diameter B | Outer Diameter A | PVC Sheath Thickness | Mass (kg) / Length per Roll (m) | |
| PTV-10 | 9.9 | 14.9 | 0.8 | 13.9 / 50 | |
| PTV-12 | 11.4 | 17.7 | 0.8 | 18.5 / 50 | |
| PTV-15 | 14.1 | 20.6 | 0.8 | 20 / 50 | |
| PTV-17 | 16.8 | 23.1 | 0.8 | 22.2 / 50 | |
| PTV-24 | 23.8 | 30.4 | 0.8 | 14.7 / 50 | |
| PTV-30 | 29.3 | 36.9 | 1 | 20.2 / 50 | |
| PTV-38 | 37.6 | 44.9 | 1 | 15.8 / 50 | |
| PTV-50 | 49.1 | 56.9 | 1 | 19.6 / 50 | |
| PTV-63 | 62.6 | 71.5 | 1.2 | 17.4 / 50 | |
| PTV-76 | 76 | 85.3 | 1.2 | 22.8 / 30 | |
| Material | PVC, Galvanized Steel Plate, Steel Plate, Water-Resistant Paper | ||||
| Remarks | |||||
