Yamato Electric YLO Series Waterproof Cannon Plug Connecting 90° Angle Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: YLO Series

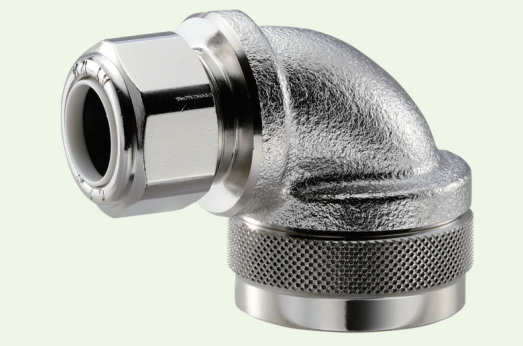

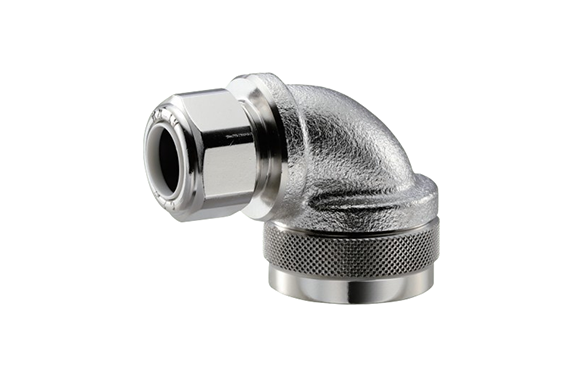

Waterproof Cannon Plug Connecting 90°Angle Connector YLO
- This is a angle connector used to connect a waterproof cannon plug to a cable.
- It is supplied with an O-ring in the connecting part between the waterproof cannon plug and the connector.
- A rotating bracket is used in the connecting part (mentioned above), allowing the direction and position to be set.
- The YLO’s dustproof/waterproof structure has a protection rating of IP67.
※The American Unified Thread differs between waterproof and non-waterproof cannon plugs.
| Designation | Code | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|

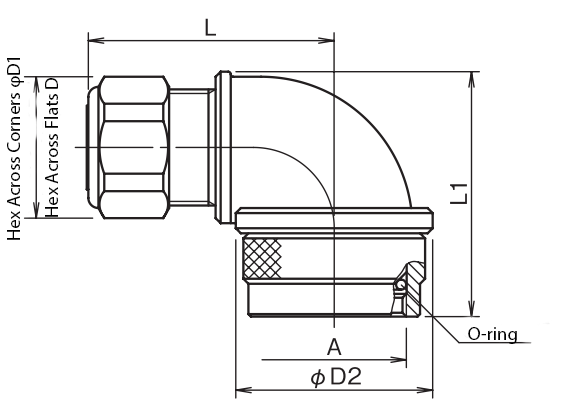

| Cable O.D. Range φ | American Unified Thread A | L | L1 | Across Flats D | Across Corners D1 | D2 | Mass (g) | Pcs/Box | ||
| YLO-10- 5~8 | φ 4 ~ 8.3 | 9/16-24UNEF-2B | 39 | 42.5 | 23 | 25 | 26 | 105 | 10 | |
| YLO-14- 5~8 | φ 4 ~ 8.3 | 3/4 -20UNEF-2B | 44.5 | 44.5 | 35 | 150 | 8 | |||
| – 9~11 | φ 7 ~ 11.3 | 43 | 35 | 147 | ||||||
| YLO-18- 5~8 | φ 4 ~ 8.3 | 1 -20UNEF-2B | 44.5 | 43.5 | 35 | 153 | ||||
| – 9~11 | φ 7 ~ 11.3 | 43 | 32 | 151 | ||||||
| – 12~14 | φ 10 ~ 14.5 | 44.5 | 50 | 26 | 28 | 32 | 182 | |||
| – 15~17 | φ 13 ~ 17.5 | 45 | 30 | 32 | 32 | 186 | ||||
| YLO-20- 9~11 | φ 7 ~ 11.3 | 1 1/8 -18UNEF-2B | 48 | 50.5 | 23 | 25 | 39 | 212 | 6 | |
| – 12~14 | φ 10 ~ 14.5 | 26 | 28 | 39 | 197 | |||||
| YLO-22- 9~11 | φ 7 ~ 11.3 | 1 1/4 -18UNEF-2B | 23 | 25 | 47 | 200 | ||||
| – 12~14 | φ 10 ~ 14.5 | 26 | 28 | 39 | 209 | |||||
| – 15~17 | φ 13 ~ 17.5 | 30 | 32 | 47 | 195 | |||||
| YLO-24-12~14 | φ 10 ~ 14.5 | 1 3/8 -18UNEF-2B | 52 | 52 | 26 | 28 | 47 | 254 | ||
| – 15~17 | φ 13 ~ 17.5 | 1 5/8 -18UNEF-2B | 52.5 | 30 | 32 | 260 | ||||
| YLO-28-15~17 | φ 13 ~ 17.5 | 1 5/8 -18UNEF-2B | 30 | 32 | 250 | 5 | ||||
| Material | Body: Brass Casting | |||||||||
| Notes | ||||||||||
Please inquire about the designation (model name) for the option with a spring.
(Example) YLO – 22 – 9 ~ 11
YLO – 22 : Cannon Plug Shell Designation
9 ~ 11 : Cable Designation

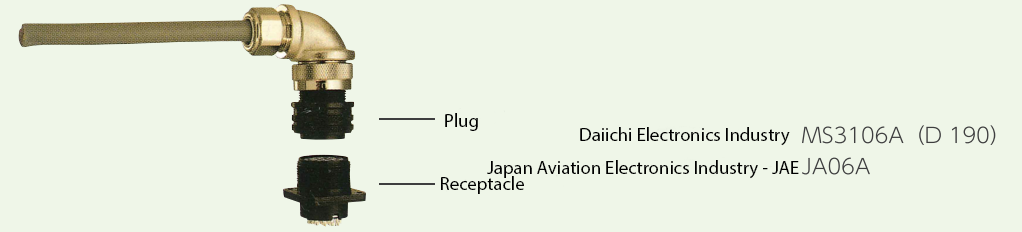

Combination Example
