Yamato FSW Series Electric Braided Sheath Semi-Interlocking Flexible Conduit
Manufacturer: Yamato Electric Co., Ltd.
Model: FSW Series
Braided Sheath Semi-Interlocking Flexible Conduit FSW

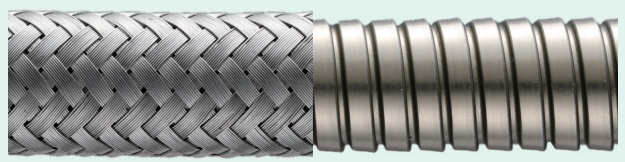

- This is a flexible conduit with a braided sheath that protects electric wires from cutting dust, spatter, etc., and a casing made of a galvanized steel strip fitted in a semi-interlocking structure.
- It can be used in locations requiring tensile and torsional strength, as well as for movable parts.
Operating Temperature Range: -50°C to +150°C
Unit: mm

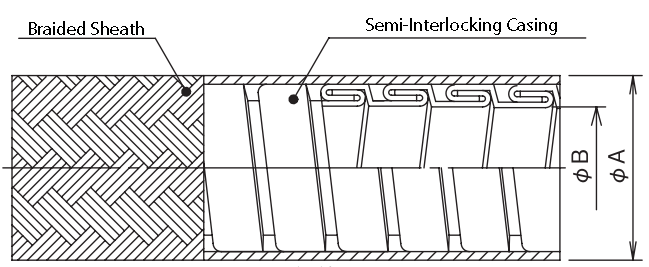

| Symbol | ||||||
|---|---|---|---|---|---|---|
| Nominal Size | Internal/External Diameter (mm) | Minimum Bending Radius (mm) | Mass (kg) / Length (m) | |||
| Min. Internal Dia. (B) | Max. External Dia. (A) | Fixed | Moving | |||
| FSW-10 | 10 | 15.5 | 60 | 119 | 12.1 / 30 | |
| 12 | 12.3 | 18 | 65 | 141 | 13.6 / 30 | |
| 16 | 15.8 | 21.3 | 75 | 176 | 16.5 / 30 | |
| 22 | 20.8 | 26.7 | 100 | 211 | 21.4 / 30 | |
| 28 | 26.4 | 33.4 | 120 | 283 | 27.3 / 30 | |
| 36 | 35 | 42.2 | 130 | 359 | 22.1 / 20 | |
| 42 | 40 | 48.3 | 160 | 425 | 23.2 / 20 | |
| 54 | 51.3 | 60.3 | 190 | 494 | 17.4 / 10 | |
| 70 | 63.5 | 76.3 | 300 | 691 | 32.3 / 10 | |
| 82note | 76.2 | 89 | 320 | 833 | 38.5 / 10 | |
| Material: Casing: Galvanized steel sheet; Coating: Galvanized steel wire | ||||||
| Notes: | ||||||
Notes: When ordering a connector for nominal size 82, please refer to the ordering example on the MS publication page (P26). Stainless steel is also available. (Made-to-order product)
