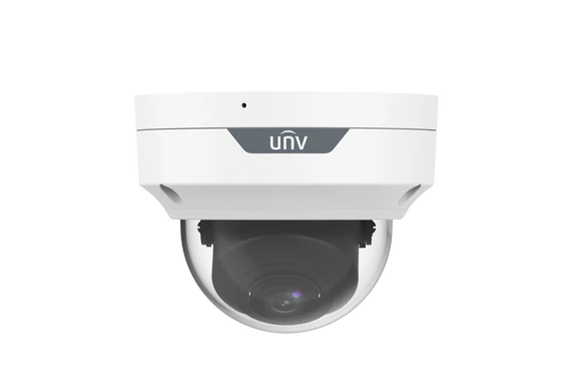

YK IPC3534LB-ADZK-H Outdoor Network Camera

Manufacturer: YK Wireless Co., Ltd.
Model: IPC3534LB-ADZK-H

Features

Supports proprietary compression technology Ultra 265, reducing data volume by up to 75% compared to H.264
Achieves minimum subject illumination of 0.003 Lux
Equipped with f2.8mm to f12mm motorized varifocal lens
Supports ultra-motion detection, allowing detection of people and vehicles only
High standard IP67 for outdoor installation

Specifications

Image element	1/3 inch progressive scan CMOS
resolution	2688(H)×1520(V)
Minimum illumination	Color: 0.003 Lux , Black and White: 0 Lux *When IR is ON
Shutter Speed	Automatic, manual (1 to 1/100,000)
White Balance	Automatic, manual
Day Night	IR cut filter method (ICR)
Wide Dynamic Range	120dB
Infrared / Beam distance	Available / Approx. 40m
Iris	Automatic
Focal length	f2.8mm to f12mm motorized varifocal lens
Angle of View	Horizontal 86.3° ~ 35.2° Vertical 47.1° ~ 17.0°
Image Compression Method	Ultra265 / H.265 / H.264 / MJPEG
Frame rate	30fps(2688×1520)
Video Settings	HLC, BLC, privacy mask, motion detection, defog, image inversion, 2D/3D-DNR, smart IR
Audio Compression	G.711U / G.711A
Audio Microphone	Built-in
Mainstream	2688xl520/2650xl440/2304xl296/1920xl080
Substream	1280×720/720×576/704×288/640×360
network	RJ-45 10/100Base
Compatibility	ONVIF(Profile S, Profile G, Profile T) / API, SDK
protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DONS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, Qos, SNMP
Power terminal	DC jack (for DC12V), PoE (RJ-45)
Local Storage	microSD up to 256GB
Intelligent Functions	Cross line detection, intrusion detection, ultra motion detection
Protection rating	IP67 Waterproof
Operating temperature and humidity	-30℃ to 60℃, 10% to 95% (no condensation)
power supply	DC12V±25%, PoE (IEEE 802.3af)
Power Consumption	8W

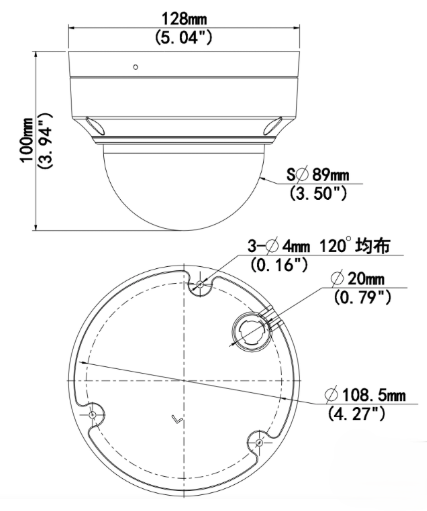

External dimensions	Φ128×H100mm
mass	Approx. 650g
What’s in the box	IPC3534LB-ADZK-H Camera body 　　screws set Special wrench Waterproof connector *Product warranty period 3 years
