YK Wireless Co.Ltd

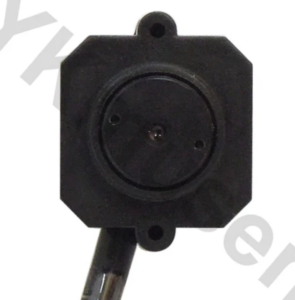

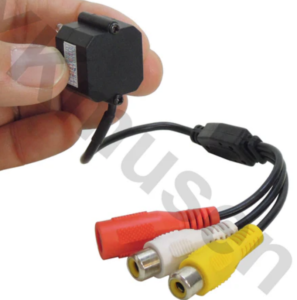

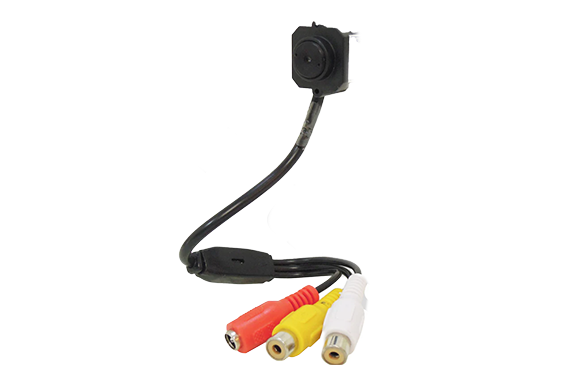

YK YM-201C Ultra-Compact CMOS Camera
Manufacturer: YK Wireless Co., Ltd.
Model: YM-201C
Features
- 21mm square compact CMOS camera
- 250,000 pixel/CVBS output camera
- Built-in audio microphone
Specifications
| Image Sensor | CMOS Image Sensor |
| Number of pixels | 250,000 pixels 510 x 492 |
| Minimum illumination | 2Lux/F1.2 |
| lens | f6mm/52 degrees |
| Shutter Speed | Automatic 1/60 sec. to 1/100,000 sec. |
| power supply | DC8V～9V |
| Power Consumption | About 125mA |
| External dimensions (mm) | H26×W21×D21 |
| weight | Approx. 27g (including cable) |
| Connection terminals | Video: RCA-J, Audio: RCA-J |
| What’s in the box | YM-201C Instruction Manual (6-month product warranty) |
