Mizumoto Machine Mfg. Co.
Mizumoto MU/ MUH Series Stainless Steel Mooring Ring
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MU/ MUH Series
Features
- Because it is made of stainless steel, it is resistant to corrosion and is beautiful compared to conventional iron mooring rings, which are prone to corrosion.
- It is set up at piers and wharves, and wire ropes are tied to moor ships.
Specifications
| Part No. | d | D1 | D2 | L | L1 | Calculated Weight (kg) | Reference Working Load | |
| (tf) | (kN) | |||||||
| MU-16 | 16 | 120 | 40 | 250 | 150 | 1.6 | 1 | 9.8 |
| MU-19 | 19 | 150 | 42 | 300 | 200 | 2.8 | 1.5 | 14.7 |
| MU-22 | 22 | 175 | 50 | 350 | 250 | 4.3 | 2 | 19.6 |
| MU-25 | 25 | 200 | 55 | 400 | 300 | 6.8 | 3 | 29.4 |
| MU-28 | 28 | 200 | 100 | 450 | 300 | 8.8 | 4 | 39.2 |
| MU-32 | 32 | 200 | 100 | 450 | 300 | 11.6 | 5 | 49 |
| Part No. | d1 | d2 | D1 | D2 | L | L1 | Calculated Weight (kg) | Reference Working Load | |
| (tf) | (kN) | ||||||||
| MUH-25-22 | 25 | 22 | 200 | 100 | 400 | 250 | 5.7 | 3 | 29.4 |
| MUH-32-28 | 32 | 28 | 250 | 100 | 400 | 250 | 10.4 | 5 | 49 |
*Material: Stainless steel SUS304
*SUS316 can also be manufactured. (We will quote separately, please contact us.) ）
[About surface finish]
*Usually barrel polished finish.
*”Buff polishing #300 equivalent” and “electropolishing finish” will be quoted separately. Please check when ordering.
[About thread cutting]
*Regardless of regular or other works, threading is not an effective screw.
Please specify the valid thread.

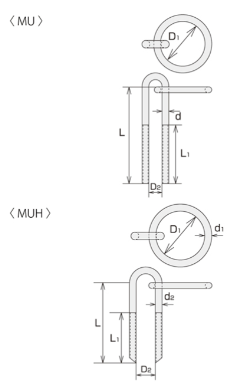

Dimensions (mm)
