Model: BB Series

Features

  • BB-64GS: 64-channel 1-gauge 2-wire bridge box, BB-64GS-1G23W: 64-channel 1-gauge 2-wire/3-wire switchable
  • BB-48GS-B: 48ch 1-gauge 2-wire terminal block, 24ch 4-gauge NDIS connector switching
  • BB-32GS-B: 32-channel 1-gauge 2-wire/3-wire, adjacent 2-gauge, and 4-gauge switchable terminal block, 4-gauge NDIS connector switchable

External View

The post Deicy BB Series Bridge Box first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy Accessory Cable https://koueitrading.com/global/product/deicy-accessory-cable/ Sat, 10 Oct 2020 01:44:39 +0000 https://koueitrading.com/global/?post_type=product&p=163931 Manufacturer: DEICY Co., Ltd. Specifications Model Product Name Shape Applicable Models Standard Cable Length CK-111-1 Synchronization Recording Cable PRC07 – PRC07 Connector For DR-600 Series 1m CK-112 DC Power Cable First Parallels – Binder09-0310-02-04 For DR-600 Series 2m CK-27 DC Power Cable First Parallels – R03 Connector For HR/AR-60TC24 Series 2m CK-28 DC Power Cable […]

The post Deicy Accessory Cable first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.

Specifications

Model Product Name Shape Applicable Models Standard Cable Length
CK-111-1 Synchronization Recording Cable PRC07 – PRC07 Connector For DR-600 Series 1m
CK-112 DC Power Cable First Parallels – Binder09-0310-02-04 For DR-600 Series 2m
CK-27 DC Power Cable First Parallels – R03 Connector For HR/AR-60TC24 Series 2m
CK-28 DC Power Cable First Parallels – PRC05 Connector For DR-600/SR-200 Series 2m
CK-SN60EXT-10 Differential Signal Transmission Cable D-sub25pin Connector For DR-600/SR-200 Series 10m
CK-633 Dynamic Strain Input Cable NDIS (Jack) – Binder 5pin For AR-60ST4/8 and AR-2T Series 30cm
CK-649 Dynamic Strain Input Cable NDIS (Plug) – Binder 5pin For AR-60ST4/8 Series 30cm
CK-634 Voltage Input Cable BNC (Jack) – Binder 5pin For AR-60ST4/8 Series 30cm
CK-642 Voltage Input Cable BNC (Plug) – Binder 5pin For AR-60ST4/8 and MS-604 Series 30cm
CK-109 Connection Cable MS Connector (Jack) – Binder 5pinx8 For AR-60ST8 (Used with MS Type Connector Cable for Direct Connect to Bridge Box) 50cm
CK-109P-3 Connection Cable MS Connector (Plug) – Binder 5pinx8 For AR-60ST8 (Used with MS Type Connector Cable for Direct Connect to Bridge Box) 3m
CK-BB-8MSPJ-3 Extension Cable MS Connector (Jack – Plug) For Extension between MS Type Connector Cable and CK-109 10m
CK-BB-8MSPJ-10-AWG22 Extension Cable MS Connector (Jack – Plug) AWG22 For Extension between MS Type Connector Cable and CK-109 10m
CK-BB-8MSPP-3 Connection Cable MS Connector (Plug – Plug) For AR-60ST8 (Used with MS Type Connector Cable for Direct Connect to Bridge Box) 3m
The post Deicy Accessory Cable first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy BTG-2 Smartphone Line-to-Line Vertical Distance Measuring Instrument https://koueitrading.com/global/product/deicy-btg-2-smartphone-line-to-line-vertical-distance-measuring-instrument/ Sat, 10 Oct 2020 01:39:17 +0000 https://koueitrading.com/global/?post_type=product&p=163929 Manufacturer: DEICY Co., Ltd. Model: BTG-2 Features Easy to operate Measurement values ​​are automatically saved to the smartphone Error within 3mm Specifications Item Content Measurement Range Distance: 2700 ~ 3100mm Height: -400 ~ +400mm Measurement Error Distance: ±3mm Height: ±3mm Data Storage Capacity Based on the available memory of the smartphone terminal Data Output Wireless […]

The post Deicy BTG-2 Smartphone Line-to-Line Vertical Distance Measuring Instrument first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: BTG-2

Features

  • Easy to operate
  • Measurement values ​​are automatically saved to the smartphone
  • Error within 3mm

Specifications

Item Content
Measurement Range Distance: 2700 ~ 3100mm
Height: -400 ~ +400mm
Measurement Error Distance: ±3mm
Height: ±3mm
Data Storage Capacity Based on the available memory of the smartphone terminal
Data Output Wireless output via Bluetooth v4.2
Power 4 AA dry batteries
Operating Temperature Range -10°C to 40°C
External Dimensions When collapsed: 1648mm
When extended: 3183mm
Weight (Excluding Smartphone) 10kg
Protection Rating IP65 (dustproof and waterproof, resistant to direct water jets from any direction)
The post Deicy BTG-2 Smartphone Line-to-Line Vertical Distance Measuring Instrument first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy Home Limit Measuring Instruments https://koueitrading.com/global/product/deicy-home-limit-measuring-instruments/ Sat, 10 Oct 2020 01:35:41 +0000 https://koueitrading.com/global/?post_type=product&p=163927 Manufacturer: DEICY Co., Ltd. Features Easy to transport and measure by one person Automatically saves measurements Error within 3mm Specifications Item Content Measurement Range Distance: 1400-1600mm (Left) / 1500-1850mm (Right) Height: 600-1250mm (Left) / 850-1350mm (Right) Level: ±150mm (Left) / ±250mm (Right) Width: 1000-1500mm Measurement Error Distance/Height: ±3mm Level/Width: ±1mm External Length (Min. when Retracted) […]

The post Deicy Home Limit Measuring Instruments first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.

Features

  • Easy to transport and measure by one person
  • Automatically saves measurements
  • Error within 3mm

Specifications

Item Content
Measurement Range Distance: 1400-1600mm (Left) / 1500-1850mm (Right)
Height: 600-1250mm (Left) / 850-1350mm (Right)
Level: ±150mm (Left) / ±250mm (Right)
Width: 1000-1500mm
Measurement Error Distance/Height: ±3mm
Level/Width: ±1mm
External Length (Min. when Retracted) 1241mm (1997mm)
Weight 5kg
Power Supply 4 dry batteries (Approx. 8 hours)
The post Deicy Home Limit Measuring Instruments first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy TPG-4 Smartphone e- Longitudinal Distance Measurement Device https://koueitrading.com/global/product/deicy-tpg-4-smartphone-e-longitudinal-distance-measurement-device/ Sat, 10 Oct 2020 01:30:48 +0000 https://koueitrading.com/global/?post_type=product&p=163925 Manufacturer: DEICY Co., Ltd. Model: TPG-4 Smartphone e- Features Easy to operate Measurement values ​​are automatically saved to the smartphone Error within 1mm Specifications Item Content Measurement Range Distance: 950 to 2000mm Height: -140 to +280mm Measurement Error Distance: ±1mm Height: ±1mm Data Memory Size Based on available memory in the smartphone Data Output Bluetooth […]

The post Deicy TPG-4 Smartphone e- Longitudinal Distance Measurement Device first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: TPG-4 Smartphone e-

Features

  • Easy to operate
  • Measurement values ​​are automatically saved to the smartphone
  • Error within 1mm

Specifications

Item Content
Measurement Range Distance: 950 to 2000mm
Height: -140 to +280mm
Measurement Error Distance: ±1mm
Height: ±1mm
Data Memory Size Based on available memory in the smartphone
Data Output Bluetooth v4.2 wireless output
Power Supply 3 dry batteries x 4 pieces
Dimensions Retracted: 1467mm
Maximum: 2487mm
Weight (excluding smartphone) 5.5kg
Protection Rating IP65 (Protected against direct water jets from any direction)
The post Deicy TPG-4 Smartphone e- Longitudinal Distance Measurement Device first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy SP-TG100 Smartphone Gauge https://koueitrading.com/global/product/deicy-sp-tg100-smartphone-gauge/ Sat, 10 Oct 2020 01:24:26 +0000 https://koueitrading.com/global/?post_type=product&p=163923 Manufacturer: DEICY Co., Ltd. Model: SP-TG100 Features Gauge, level and backgauge can be easily displayed and recorded on a wirelessly connected smartphone. Additional information such as distance, line, and person measuring can also be recorded Lightweight (narrow gauge: 1.8 kg), easy to operate (just press a button), and highly accurate (reproducibility 0.2 mm) Compliant with […]

The post Deicy SP-TG100 Smartphone Gauge first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: SP-TG100

Features

  • Gauge, level and backgauge can be easily displayed and recorded on a wirelessly connected smartphone.
  • Additional information such as distance, line, and person measuring can also be recorded
  • Lightweight (narrow gauge: 1.8 kg), easy to operate (just press a button), and highly accurate (reproducibility 0.2 mm)
  • Compliant with JIS E 1507 (railway gauges) and EN13848-4 (hand measuring gauges and lightweight measuring devices)

Specifications

Item/Model Standard Rail (1435mm) Narrow Rail (1067mm)
Track -40mm/+60mm -40mm/+60mm
Water Level -250mm to +250mm -250mm to +250mm
Flatness ±440mm ±240mm
Back Gauge 1375mm to 1475mm 1107mm to 1007mm
Resolution 0.2mm 0.2mm
Accuracy ±0.5mm ±0.5mm
Track Measurement Position From the rail surface to -14mm (up to -16mm with custom specification) From the rail surface to -14mm (up to -16mm with custom specification)
Data Memory Size Based on available memory in the smartphone Based on available memory in the smartphone
Data Output Bluetooth v4.2 wireless power Bluetooth v4.2 wireless power
Power Supply AA dry batteries x4 (rechargeable batteries available) AA dry batteries x4 (rechargeable batteries available)
Operating Temperature Range -10°C to +40°C -10°C to +40°C
External Dimensions 1630 x 83 x 80mm 1260 x 83 x 80mm
Weight (excluding smartphone) 2.3kg 1.8kg
The post Deicy SP-TG100 Smartphone Gauge first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy LR-S100 Track Inspection Device https://koueitrading.com/global/product/deicy-lr-s100-track-inspection-device/ Sat, 10 Oct 2020 01:09:01 +0000 https://koueitrading.com/global/?post_type=product&p=163921 Manufacturer: DEICY Co., Ltd. Model: LR-S100 Features A high-precision gyro sensor delivers superior reproducibility, and as a result, it clearly surpasses conventional models in performance. In addition, the design allows easy assembly and disassembly, so users do not need any cable connections; therefore, the system also ensures excellent mobility. Moreover, the measuring beam measures 1.25 […]

The post Deicy LR-S100 Track Inspection Device first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: LR-S100

Features

A high-precision gyro sensor delivers superior reproducibility, and as a result, it clearly surpasses conventional models in performance.
In addition, the design allows easy assembly and disassembly, so users do not need any cable connections; therefore, the system also ensures excellent mobility.
Moreover, the measuring beam measures 1.25 m in length and weighs approximately 14 kg, which means the unit remains extremely compact, lightweight, and easy to handle.

Specifications

Item Content
Model Standard model (1435mm)
Compact model (762mm, 1000mm, 1067mm, 1372mm, etc.)
Wide model (1676mm)
Separate measurement devices available for the models listed above
Measurement & Recording Items 10m Low-frequency (left, right)
10m Low-frequency (left, right)
Large, axis, flat (2.5m, 5m, etc.) selection
Maximum Measurement Distance 10m Low-frequency (left, right)
10m Low-frequency (left, right)
Large, axis, flat (2.5m, 5m, etc.) selection
Measurement Method Used “micro differential method” with a microscope
Detection Gap Length 1.25m
Data Recording Interval 0.25m
Repetition Accuracy LR-S120: 0.15mm / LR-S100: 0.2mm / LR-S080: 0.5mm / LR-S050: 0.7mm (10m standard deviation)
Travel Speed 1 ~ 28km/h (measure in speed, with optional features)
Measurement Range Height (±300mm) / Water (±300mm) / Axis (+45mm/-20mm) / Flat (+300mm)
Recording Data File Format CSV (cut section of ASCII data) and TAFFmat format (with text header and binary data)
Recording Data Type 0.25m, 2.5m, 5m, 20/40m step size. Corrected to the left or right rail height, axis, water, flatness
Standard Auxiliary Equipment Set of base rail auxiliary equipment for recording data. Corrected base rail data added to the file after recording
Interface Bluetooth 2.1+EDR standard
Measurement Data recording and measurement of each base and axis track
The post Deicy LR-S100 Track Inspection Device first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy AOS Orientation Sensor https://koueitrading.com/global/product/deicy-aos-orientation-sensor/ Fri, 09 Oct 2020 23:23:29 +0000 https://koueitrading.com/global/?post_type=product&p=163912 Manufacturer: DEICY Co., Ltd. Model: AOS Features Power supply: 6 to 32V DC, Operating temperature range: -40°C to +85°C Φ60 x 22D mm (excluding connector), protection class IP67 CAN output (CANopen protocol) Suitable for: Angle measurement in a dynamic environment where vibrations and accelerations occur, Vehicle vibration measurement in a real environment

The post Deicy AOS Orientation Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: AOS

Features

  • Power supply: 6 to 32V DC, Operating temperature range: -40°C to +85°C
  • Φ60 x 22D mm (excluding connector), protection class IP67
  • CAN output (CANopen protocol)
  • Suitable for: Angle measurement in a dynamic environment where vibrations and accelerations occur, Vehicle vibration measurement in a real environment
The post Deicy AOS Orientation Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy ADMA-SPEED GPS Speed ​​Sensor https://koueitrading.com/global/product/deicy-adma-speed-gps-speed-sensor/ Fri, 09 Oct 2020 23:16:10 +0000 https://koueitrading.com/global/?post_type=product&p=163910 Manufacturer: DEICY Co., Ltd. Model: ADMA-SPEED Features The GPS antenna and inertial sensor parts are integrated, making installation easier. Mounted on the vehicle roof using a magnet. Pitch angle correction caused by brake operation. Specifications Specification NG2i NG3i NG4i Measurement Range ±10° ±30° ±80° Sensitivity 0.8mA/° 0.266mA/° 0.1mA/° Resolution < 0.001° < 0.003° < 0.01° […]

The post Deicy ADMA-SPEED GPS Speed ​​Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: ADMA-SPEED

Features

  • The GPS antenna and inertial sensor parts are integrated, making installation easier.
  • Mounted on the vehicle roof using a magnet.
  • Pitch angle correction caused by brake operation.

Specifications

Specification NG2i NG3i NG4i
Measurement Range ±10° ±30° ±80°
Sensitivity 0.8mA/° 0.266mA/° 0.1mA/°
Resolution < 0.001° < 0.003° < 0.01°
Nonlinearity 0.02° 0.06° 0.16°
Cross-axis Sensitivity < 0.5% (45° inclination) < 0.1% (45° inclination) < 0.1% (45° inclination)
Response Time Approx. 0.3 sec. Approx. 0.3 sec. Approx. 0.3 sec.
Temperature Drift Approx. ±0.01%/°C Approx. ±0.01%/°C Approx. ±0.01%/°C
Zero Drift Approx. ±10°/°C Approx. ±10°/°C Approx. ±10°/°C
Power Supply Ubz=10～30V DC Ubz=10～30V DC Ubz=10～30V DC
Power Consumption Approx. 40mA (Ub=5V) Approx. 40mA (Ub=5V) Approx. 40mA (Ub=5V)
Case Protection Rating IP65 IP65 IP65
Operating Temperature Range –40°C～+85°C –40°C～+85°C –40°C～+85°C
Surrounding Temperature Range –45°C～+90°C –45°C～+90°C –45°C～+90°C
Weight (without cable) Approx. 110g Approx. 110g Approx. 110g
Housing Material Reinforced Glass Fiber Reinforced Plastic Reinforced Glass Fiber Reinforced Plastic Reinforced Glass Fiber Reinforced Plastic
Connection Cable Ø4.6mm × 1.0m Shielded Cable Ø4.6mm × 1.0m Shielded Cable Ø4.6mm × 1.0m Shielded Cable
The post Deicy ADMA-SPEED GPS Speed ​​Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy ADMA-G-PRO+ High-Precision Inertial Sensor For Vehicle Behavior Measurement https://koueitrading.com/global/product/deicy-adma-g-pro-high-precision-inertial-sensor-for-vehicle-behavior-measurement/ Fri, 09 Oct 2020 23:09:25 +0000 https://koueitrading.com/global/?post_type=product&p=163908 Manufacturer: DEICY Co., Ltd. Model: ADMA-G-PRO+ Features Outputs 3-axis vehicle behavior, speed, and position data Fastest 1kHz data output Data latency < 1 ms Specifications Measurement/Component Description Gyro / Measurement range and resolution 3 x Closed-loop Fiber Optic Gyros, measurement range ±320°/sec, 0.00004°/sec (roll/pitch/yaw) In-run Bias 0.1°/hour (typical) Gyro Noise 0.12°/√h Scale Factor Accuracy ≤0.1%, […]

The post Deicy ADMA-G-PRO+ High-Precision Inertial Sensor For Vehicle Behavior Measurement first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: ADMA-G-PRO+

Features

  • Outputs 3-axis vehicle behavior, speed, and position data
  • Fastest 1kHz data output
  • Data latency < 1 ms

Specifications

Measurement/Component Description
Gyro / Measurement range and resolution 3 x Closed-loop Fiber Optic Gyros, measurement range ±320°/sec, 0.00004°/sec (roll/pitch/yaw)
In-run Bias 0.1°/hour (typical)
Gyro Noise 0.12°/√h
Scale Factor Accuracy ≤0.1%, 0.05% (typical)
Sensor bandwidth 8000 Hz
Accelerometer / Measurement range and resolution 3 x Servo Accelerometers, ±5 g, <1 mg (no Kalman filter correction)
In-run Bias 10 µg (1 σ, typical)
Scale Factor Stability 0.015% (1 σ)
Digitized resolution 100 µg
Sensor bandwidth 500 Hz
GPS Position Accuracy 0.01/0.2/0.4/0.6/1.2/1.5 m (RMS, varies by GPS receiver model)
GPS Data Update Rate 50ms (20ms to 1ms if interpolated)
The post Deicy ADMA-G-PRO+ High-Precision Inertial Sensor For Vehicle Behavior Measurement first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy NG360 Full-Angle Inclination Sensor https://koueitrading.com/global/product/deicy-ng360-full-angle-inclination-sensor/ Fri, 09 Oct 2020 23:01:29 +0000 https://koueitrading.com/global/?post_type=product&p=163906 Manufacturer: DEICY Co., Ltd. Model: NG360 Features Overall, the device combines high precision, flexibility, and ease of use. It delivers stable and repeatable measurement performance thanks to its advanced gyro sensor, while also supporting bidirectional rotation measurement with high resolution and no hysteresis. In addition, users can independently configure the measurement range and low-pass filter […]

The post Deicy NG360 Full-Angle Inclination Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: NG360

Features

Overall, the device combines high precision, flexibility, and ease of use. It delivers stable and repeatable measurement performance thanks to its advanced gyro sensor, while also supporting bidirectional rotation measurement with high resolution and no hysteresis. In addition, users can independently configure the measurement range and low-pass filter for each channel, which enhances adaptability. Moreover, temperature compensation and excellent linearity ensure reliable results under varying conditions. Finally, the lightweight and compact design, along with simple assembly that requires no cable connections, greatly improves portability and operational efficiency.

Specifications

Model Measurement Range Resolution Non-Linearity Cross Sensitivity Response Time Power Supply Current Consumption Case Protection Grade Operating Temperature Range Ambient Temperature Range Weight (without cable) Housing Material Connection Cable
N360 360° 0.01° ±0.25° ±0.1° (at 45° tilt) Approx. 0.3 seconds 9~15V DC Approx. 40mA (Ub=5V) IP65 −40°C to +85°C −45°C to +90°C Approx. 110g Reinforced fiberglass housing Diameter 4.6mm, length 1.0m shielded cable
The post Deicy NG360 Full-Angle Inclination Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy NA Series https://koueitrading.com/global/product/deicy-na-series/ Fri, 09 Oct 2020 22:55:19 +0000 https://koueitrading.com/global/?post_type=product&p=163904 Manufacturer: DEICY Co., Ltd. Model: NA Series Features The linear range can go up to ±80°. Zero drift and cross-sensitivity interference are extremely low. Excellent long-term stability. No hysteresis, providing high-precision linearity. Specifications Power Supply +9V to +30V DC Current (+8V to +30V) Approximately 2mA External Stabilized Power Supply (Option) +5V Current (+5V) (Option) Approximately […]

The post Deicy NA Series first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: NA Series

Features

  • The linear range can go up to ±80°.
  • Zero drift and cross-sensitivity interference are extremely low.
  • Excellent long-term stability.
  • No hysteresis, providing high-precision linearity.

Specifications

Power Supply +9V to +30V DC
Current (+8V to +30V) Approximately 2mA
External Stabilized Power Supply (Option) +5V
Current (+5V) (Option) Approximately 1mA
Protection Grade IP65
Offset Voltage 2.5V
Cross Sensitivity (45° Tilt) <1%
Noise Voltage <150μV Vss
Reference Output Voltage (Option) 5.00V
Reference Output Voltage Temperature Drift <25ppm/°C
Reference Output Maximum Current 5mA
Weight (Without Fixed Ring, Cable) 18.5g
Output Resistance Approximately 100Ω
Response Time (Within ±2% of Actual Value) <0.3sec
Electrical Signal Noise >85 dB
Connection Cable 2.1mmφ × 0.5m Shielded Cable
The post Deicy NA Series first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy NG*i/NG*U Series Liquid-Filled Capacitive Signal Conditioner Built-In Inclination Angle Sensor https://koueitrading.com/global/product/deicy-ngi-ngu-series-liquid-filled-capacitive-signal-conditioner-built-in-inclination-angle-sensor/ Fri, 09 Oct 2020 22:43:35 +0000 https://koueitrading.com/global/?post_type=product&p=163902 Manufacturer: DEICY Co., Ltd. Model: NG*i / NG*U Series Features Excellent long-term stability and low power consumption. High precision linearity with no hysteresis. IP65 dustproof and waterproof housing. EMC-compliant, usable even in strong electromagnetic fields. Specifications Model Measuring Range Sensitivity Resolution Non-linearity Cross Sensitivity Response Time Temperature Drift Zero Drift Voltage Range Output Signal (0°) […]

The post Deicy NG*i/NG*U Series Liquid-Filled Capacitive Signal Conditioner Built-In Inclination Angle Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: NG*i / NG*U Series

Features

  • Excellent long-term stability and low power consumption.
  • High precision linearity with no hysteresis.
  • IP65 dustproof and waterproof housing.
  • EMC-compliant, usable even in strong electromagnetic fields.

Specifications

Model Measuring Range Sensitivity Resolution Non-linearity Cross Sensitivity Response Time Temperature Drift Zero Drift Voltage Range Output Signal (0°) Protection Level Operating Temperature Range Storage Temperature Range Shock Resistance Weight (without cable)
NG2i ±10° 0.8mA/° <0.001° 0.02° <0.5% (45° tilt) Approx. 0.3 sec Approx. -0.01%/°C Approx. ±10°/°C Ubz=10~30V 12mA IP65 -40°C ~ +85°C -45°C ~ +90°C 100G Approx. 110g
NG3i ±30° 0.266mA/° <0.003° 0.06° <0.5% (45° tilt) Approx. 0.3 sec (Option: 1s, 2s, 3s) Approx. -0.01%/°C Approx. ±10°/°C Ubz=10~30V 12mA IP65 -40°C ~ +85°C -45°C ~ +90°C 100G Approx. 110g
NG4i ±80° 0.1mA/° <0.01° 0.16° <0.5% (45° tilt) Approx. 0.3 sec Approx. -0.01%/°C Approx. ±10°/°C Ubz=10~30V 12mA IP65 -40°C ~ +85°C -45°C ~ +90°C 100G Approx. 110g
The post Deicy NG*i/NG*U Series Liquid-Filled Capacitive Signal Conditioner Built-In Inclination Angle Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy N Series Liquid-Filled Capacitive Inclination Sensor https://koueitrading.com/global/product/deicy-n-series-liquid-filled-capacitive-inclination-sensor/ Fri, 09 Oct 2020 02:17:45 +0000 https://koueitrading.com/global/?post_type=product&p=163898 Manufacturer: DEICY Co., Ltd. Model: N Series Features This inclination angle sensor is available in three models with measurement angle ranges of ±10°/30°/70° Specifications Item N2 N3 N4 Measuring Range ±10° ±30° ±70° Resolution <0.002° <0.005° <0.01° Non-linearity 0.04° 0.12° 0.28° Horizontal Sensitivity <1% (±30°) <1% (±30°) <1% (±30°) Response Time Approx. 0.3 sec Approx. […]

The post Deicy N Series Liquid-Filled Capacitive Inclination Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: N Series

Features

  • This inclination angle sensor is available in three models with measurement angle ranges of ±10°/30°/70°

Specifications

Item N2 N3 N4
Measuring Range ±10° ±30° ±70°
Resolution <0.002° <0.005° <0.01°
Non-linearity 0.04° 0.12° 0.28°
Horizontal Sensitivity <1% (±30°) <1% (±30°) <1% (±30°)
Response Time Approx. 0.3 sec Approx. 0.3 sec Approx. 0.3 sec
Power Supply Ubn=5V DC Ubn=5V DC Ubn=5V DC
Input Voltage Range Ubz=3~6V DC Ubz=3~6V DC Ubz=3~6V DC
Current Consumption Approx. 1mA Approx. 1mA Approx. 1mA
Protection Class IP65 IP65 IP65
Operating Temperature Range -40°C ~ +85°C -40°C ~ +85°C -40°C ~ +85°C
Environmental Temperature Range -45°C ~ +90°C -45°C ~ +90°C -45°C ~ +90°C
Durability 5G, 5 ~ 500Hz 5G, 5 ~ 500Hz 5G, 5 ~ 500Hz
Shock Resistance 10,000G 10,000G 10,000G
Weight (without cable) 18.5g 18.5g 18.5g
Housing Material Glass fiber reinforced plastic housing Glass fiber reinforced plastic housing Glass fiber reinforced plastic housing
Connection Cable Standard: 0.5m (φ2.1mm) shielded cable Standard: 0.5m (φ2.1mm) shielded cable Standard: 0.5m (φ2.1mm) shielded cable
The post Deicy N Series Liquid-Filled Capacitive Inclination Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy NB3 Film Spring Mass Capacitive Inclination Sensor https://koueitrading.com/global/product/deicy-nb3-film-spring-mass-capacitive-inclination-sensor/ Fri, 09 Oct 2020 02:13:02 +0000 https://koueitrading.com/global/?post_type=product&p=163896 Manufacturer: DEICY Co., Ltd. Model: NB3 Features This tilt angle sensor outputs a highly accurate linear signal for slight tilt angle changes of ±10°or less. Specifications Item NB3 Linear Range ±10° Resolution <0.001° Non-linearity 0.04° Horizontal Tilt Approximately flat Response Time Approx. 0.3 sec (Option: ≤ 0.3 sec) Power Supply Ubn=5V DC Input Voltage Range […]

The post Deicy NB3 Film Spring Mass Capacitive Inclination Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: NB3

Features

  • This tilt angle sensor outputs a highly accurate linear signal for slight tilt angle changes of ±10°or less.

Specifications

Item NB3
Linear Range ±10°
Resolution <0.001°
Non-linearity 0.04°
Horizontal Tilt Approximately flat
Response Time Approx. 0.3 sec (Option: ≤ 0.3 sec)
Power Supply Ubn=5V DC
Input Voltage Range Ubz=3~6V DC
Current Consumption Approx. 1mA
Operating Temperature Range -45°C to +90°C (Option: 125°C)
Durability 5G, 5 ~ 500Hz
Shock Resistance Approx. 100G
Weight (without cable) Approx. 25g
Housing Material Brass Nickel Plating
Connection Cable Standard: 0.5m (φ2.1mm) shielded cable. Option: direct 3-wire cable 180mm (Cable length can be extended by request.)
The post Deicy NB3 Film Spring Mass Capacitive Inclination Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR1800 Series Digital Serial Outputs Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr1800-series-digital-serial-outputs-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 01:42:02 +0000 https://koueitrading.com/global/?post_type=product&p=163890 Manufacturer: DEICY Co., Ltd. Model: MHR1800 Series Features 1.8-inch diameter synchro mount case M4 thread mount Angle range 360° Protection class IP68/69K Dual Output Option ■ Dimensions for MHR1811 YZ-XXX – Analogue Voltage Output

The post Deicy MHR1800 Series Digital Serial Outputs Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR1800 Series

Features

  • 1.8-inch diameter synchro mount case
  • M4 thread mount
  • Angle range 360°
  • Protection class IP68/69K
  • Dual Output Option

■ Dimensions for MHR1811 YZ-XXX – Analogue Voltage Output

The post Deicy MHR1800 Series Digital Serial Outputs Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5800 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5800-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 01:35:37 +0000 https://koueitrading.com/global/?post_type=product&p=163884 Manufacturer: DEICY Co., Ltd. Model: MHR5800 Series Features Electrically isolated quad output Angle range: 20° to 360°, every 1° 3 types of stainless steel shafts High vibration applications 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5810 – Flange mounting with a sprung shaft   ■ Dimensions for MHR5820 […]

The post Deicy MHR5800 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5800 Series

Features

  • Electrically isolated quad output
  • Angle range: 20° to 360°, every 1°
  • 3 types of stainless steel shafts
  • High vibration applications
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5810 – Flange mounting with a sprung shaft



■ Dimensions for MHR5820 – Flange mounting with a round shaft

■ Dimensions for MHR5830 – Flange mounting with a sprung shaft



The post Deicy MHR5800 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5700 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5700-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 01:31:20 +0000 https://koueitrading.com/global/?post_type=product&p=163880 Manufacturer: DEICY Co., Ltd. Model: MHR5700 Series Features Dual electrically isolated outputs The magnet and sensing units are housed in separate housings Angle range: 20° to 360°, every 1° 3 types of stainless steel shafts High vibration applications 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5740 – Flange […]

The post Deicy MHR5700 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5700 Series

Features

  • Dual electrically isolated outputs
  • The magnet and sensing units are housed in separate housings
  • Angle range: 20° to 360°, every 1°
  • 3 types of stainless steel shafts
  • High vibration applications
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5740 – Flange mounting with magnet options

■ MHR574X XV-XXX Magnet holder option

The post Deicy MHR5700 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5600 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5600-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 01:19:13 +0000 https://koueitrading.com/global/?post_type=product&p=163872 Manufacturer: DEICY Co., Ltd. Model: MHR5600 Series Features Dual electrically isolated outputs Angle range: 20° to 360°, every 1° 3 types of stainless steel shafts High vibration applications 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5610 – Triangular Flange mounting with a sprung shaft ■ Dimensions for MHR5620 […]

The post Deicy MHR5600 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5600 Series

Features

  • Dual electrically isolated outputs
  • Angle range: 20° to 360°, every 1°
  • 3 types of stainless steel shafts
  • High vibration applications
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5610 – Triangular Flange mounting with a sprung shaft

■ Dimensions for MHR5620 – Triangular Flange mounting with a round shaft

■ Dimensions for MHR5630 – Triangular Flange mounting with a blade shaft

The post Deicy MHR5600 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5500 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5500-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 01:13:20 +0000 https://koueitrading.com/global/?post_type=product&p=163866 Manufacturer: DEICY Co., Ltd. Model: MHR5500 Series Features The magnet and sensing units are housed in separate housings Angle range: 20° to 360°, every 1° High vibration applications 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5540 – Flange mounting with magnet options ■ Dimensions for MHR554X XV-XXX Magnet […]

The post Deicy MHR5500 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5500 Series

Features

  • The magnet and sensing units are housed in separate housings
  • Angle range: 20° to 360°, every 1°
  • High vibration applications
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5540 – Flange mounting with magnet options

■ Dimensions for MHR554X XV-XXX Magnet holder options

The post Deicy MHR5500 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5450 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5450-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 01:09:28 +0000 https://koueitrading.com/global/?post_type=product&p=163862 Manufacturer: DEICY Co., Ltd. Model: MHR5450 Series Features Dual electrically isolated outputs Angle range: 20° to 360°, every 1° D-type socket High vibration applications 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5450 – Flange mounting with a D-type socket

The post Deicy MHR5450 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5450 Series

Features

  • Dual electrically isolated outputs
  • Angle range: 20° to 360°, every 1°
  • D-type socket
  • High vibration applications
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5450 – Flange mounting with a D-type socket

The post Deicy MHR5450 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5400 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5400-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 01:02:49 +0000 https://koueitrading.com/global/?post_type=product&p=163856 Manufacturer: DEICY Co., Ltd. Model: MHR5400 Series Features Dual electrically isolated outputs Angle range: 20° to 360°, every 1° 3 types of stainless steel shafts Low-friction ball race bearings 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5410 – Flange mounting with a sprung shaft ■ Dimensions for MHR5420 […]

The post Deicy MHR5400 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5400 Series

Features

  • Dual electrically isolated outputs
  • Angle range: 20° to 360°, every 1°
  • 3 types of stainless steel shafts
  • Low-friction ball race bearings
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5410 – Flange mounting with a sprung shaft

■ Dimensions for MHR5420 – Flange mounting with a round shaft

■ Dimensions for MHR5430 – Flange mounting with a blade shaft

The post Deicy MHR5400 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5300 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5300-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 00:50:55 +0000 https://koueitrading.com/global/?post_type=product&p=163847 Manufacturer: DEICY Co., Ltd. Model: MHR5300 Series Features Angle range: 20° to 360°, every 1° 3 types of stainless steel shafts Low-friction ball race bearings 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5310 – Triangular Flange mounting with a sprung shaft ■ Dimensions for MHR5320 – Triangular Flange […]

The post Deicy MHR5300 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5300 Series

Features

  • Angle range: 20° to 360°, every 1°
  • 3 types of stainless steel shafts
  • Low-friction ball race bearings
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5310 – Triangular Flange mounting with a sprung shaft

■ Dimensions for MHR5320 – Triangular Flange mounting with a round shaft

■ Dimensions for MHR5330 – Triangular Flange mounting with a blade shaft

The post Deicy MHR5300 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5250 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5250-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 00:46:44 +0000 https://koueitrading.com/global/?post_type=product&p=163843 Manufacturer: DEICY Co., Ltd. Model: MHR5250 Series Features Angle range: 20° to 360°, every 1° D-type socket High dither vibration applications 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5250 – Flange mounting for a D-type socket

The post Deicy MHR5250 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5250 Series

Features

  • Angle range: 20° to 360°, every 1°
  • D-type socket
  • High dither vibration applications
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5250 – Flange mounting for a D-type socket

The post Deicy MHR5250 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5200 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5200-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 00:40:20 +0000 https://koueitrading.com/global/?post_type=product&p=163835 Manufacturer: DEICY Co., Ltd. Model: MHR5200 Series Features Angle range: 20° to 360°, every 1° 3 types of stainless steel shafts Low-friction ball race bearings 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5210 – Flange mounting with a sprung shaft ■ Dimensions for MHR5220 – Flange mounting with […]

The post Deicy MHR5200 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5200 Series

Features

  • Angle range: 20° to 360°, every 1°
  • 3 types of stainless steel shafts
  • Low-friction ball race bearings
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5210 – Flange mounting with a sprung shaft

■ Dimensions for MHR5220 – Flange mounting with a round shaft

■ Dimensions for MHR5230 – Flange mounting with a blade shaft

The post Deicy MHR5200 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR0900 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr0900-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 00:35:43 +0000 https://koueitrading.com/global/?post_type=product&p=163830 Manufacturer: DEICY Co., Ltd. Model: MHR0900 Series Features Angle range: 20° to 360°, every 1° Low-friction ball race bearings 0.9 inch diameter synchro mount case 5 VDC or 8 to 30 VDC powered Dual Output Option Protection class IP68/IP69K ■ Dimensions for MHR0911 – Synchro mounting, single output ■ Dimensions for MHR0921 – Synchro mounting, […]

The post Deicy MHR0900 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR0900 Series

Features

  • Angle range: 20° to 360°, every 1°
  • Low-friction ball race bearings
  • 0.9 inch diameter synchro mount case
  • 5 VDC or 8 to 30 VDC powered
  • Dual Output Option
  • Protection class IP68/IP69K

■ Dimensions for MHR0911 – Synchro mounting, single output

■ Dimensions for MHR0921 – Synchro mounting, dual output

The post Deicy MHR0900 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR0500 Series Magnetic-Hall Rotary Position Sensor (Miniature) https://koueitrading.com/global/product/deicy-mhr0500-series-magnetic-hall-rotary-position-sensor-miniature/ Fri, 09 Oct 2020 00:14:41 +0000 https://koueitrading.com/global/?post_type=product&p=163791 Manufacturer: DEICY Co., Ltd. Model: MHR0500 Series Features Compact 12.7mm aluminum case Lightweight design Angle range: 20° to 360°, every 1° Low-friction ball race bearings Synchro mount or flange mount case 5 VDC powered ■ Dimensions for MHR0510 – Flange mounting ■ Dimensions for MHR0520 – Synchro mounting

The post Deicy MHR0500 Series Magnetic-Hall Rotary Position Sensor (Miniature) first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR0500 Series

Features

  • Compact 12.7mm aluminum case
  • Lightweight design
  • Angle range: 20° to 360°, every 1°
  • Low-friction ball race bearings
  • Synchro mount or flange mount case
  • 5 VDC powered

■ Dimensions for MHR0510 – Flange mounting

■ Dimensions for MHR0520 – Synchro mounting

The post Deicy MHR0500 Series Magnetic-Hall Rotary Position Sensor (Miniature) first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5140 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5140-series-magnetic-hall-rotary-position-sensor/ Fri, 09 Oct 2020 00:00:07 +0000 https://koueitrading.com/global/?post_type=product&p=163768 Manufacturer: DEICY Co., Ltd. Model: MHR5140 Series Features Angle range: 20° to 360°, every 1° The magnet and sensing units are housed in separate housings Nonlinearity < 0.25%FS 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5141 and MHR5142 – Flange mounting – magnet options

The post Deicy MHR5140 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5140 Series

Features

  • Angle range: 20° to 360°, every 1°
  • The magnet and sensing units are housed in separate housings
  • Nonlinearity < 0.25%FS
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5141 and MHR5142 – Flange mounting – magnet options

The post Deicy MHR5140 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHR5100 Series Magnetic-Hall Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhr5100-series-magnetic-hall-rotary-position-sensor/ Thu, 08 Oct 2020 23:53:02 +0000 https://koueitrading.com/global/?post_type=product&p=163761 Manufacturer: DEICY Co., Ltd. Model: MHR5100 Series Features Angle range: 20° to 360°, every 1° 3 types of stainless steel shafts Nonlinearity < 0.25%FS 5 VDC or 8 to 30 VDC powered Protection class IP68/IP69K ■ Dimensions for MHR5110 – Flange mounting – sprung shaft ■ Dimensions for MHR5120 – Flange mounting – round shaft […]

The post Deicy MHR5100 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHR5100 Series

Features

  • Angle range: 20° to 360°, every 1°
  • 3 types of stainless steel shafts
  • Nonlinearity < 0.25%FS
  • 5 VDC or 8 to 30 VDC powered
  • Protection class IP68/IP69K

■ Dimensions for MHR5110 – Flange mounting – sprung shaft

■ Dimensions for MHR5120 – Flange mounting – round shaft

■ Dimensions for MHR5130 – Flange mounting – blade shaft

The post Deicy MHR5100 Series Magnetic-Hall Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy VRP1520 Series Rotary Potentiometer https://koueitrading.com/global/product/deicy-vrp1520-series-rotary-potentiometer/ Thu, 08 Oct 2020 23:48:36 +0000 https://koueitrading.com/global/?post_type=product&p=163757 Manufacturer: DEICY Co., Ltd. Model: VRP1520 Series Features Angle range: 100°, 130°, 350° 4 – 20mA output 2-wire type Aluminum 1.5-inch synchro mount case Stainless Steel Shaft Nonlinearity < ±0.50%FS Protection class IP67 ■ Dimensions for VRP1520 – Synchro mounting with rear cable exit

The post Deicy VRP1520 Series Rotary Potentiometer first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: VRP1520 Series

Features

  • Angle range: 100°, 130°, 350°
  • 4 – 20mA output 2-wire type
  • Aluminum 1.5-inch synchro mount case
  • Stainless Steel Shaft
  • Nonlinearity < ±0.50%FS
  • Protection class IP67

■ Dimensions for VRP1520 – Synchro mounting with rear cable exit

The post Deicy VRP1520 Series Rotary Potentiometer first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy RP5200 Series Rotary Potentiometer https://koueitrading.com/global/product/deicy-rp5200-series-rotary-potentiometer/ Thu, 08 Oct 2020 23:06:16 +0000 https://koueitrading.com/global/?post_type=product&p=163722 Manufacturer: DEICY Co., Ltd. Model: RP5200 Series Features Angle range: 100°, 130°, 350° 3 types of stainless steel shafts Aluminum flange mount case Twin ball race shaft bearing Heat shrink boot option Protection class IP66 ■ Dimensions for RP5110 – Flange mounting – sprung shaft ■ Dimensions for RP5220 – Flange mounting – round shaft […]

The post Deicy RP5200 Series Rotary Potentiometer first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: RP5200 Series

Features

  • Angle range: 100°, 130°, 350°
  • 3 types of stainless steel shafts
  • Aluminum flange mount case
  • Twin ball race shaft bearing
  • Heat shrink boot option
  • Protection class IP66

■ Dimensions for RP5110 – Flange mounting – sprung shaft

■ Dimensions for RP5220 – Flange mounting – round shaft

■ Dimensions for RP5230 – Flange mounting – blade shaft

The post Deicy RP5200 Series Rotary Potentiometer first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy RP5100 Series Rotary Potentiometer https://koueitrading.com/global/product/deicy-rp5100-series-rotary-potentiometer/ Thu, 08 Oct 2020 22:39:35 +0000 https://koueitrading.com/global/?post_type=product&p=163709 Manufacturer: DEICY Co., Ltd. Model: RP5100 Series Features Angle range: 100°, 130°, 350° 3 types of stainless steel shafts Heat shrink boot option Flange Mount bush type shaft bearing Protection class IP66 ■ Dimensions for RP5110 – Flange mounting – sprung shaft ■ Drive shaft detail ■ Dimensions for RP5120 – Flange mounting – round […]

The post Deicy RP5100 Series Rotary Potentiometer first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: RP5100 Series

Features

  • Angle range: 100°, 130°, 350°
  • 3 types of stainless steel shafts
  • Heat shrink boot option
  • Flange Mount
  • bush type shaft bearing
  • Protection class IP66

■ Dimensions for RP5110 – Flange mounting – sprung shaft

■ Drive shaft detail

■ Dimensions for RP5120 – Flange mounting – round shaft

■ Dimensions for RP5130 – Flange mounting – blade shaft

■ Drive shaft detail

The post Deicy RP5100 Series Rotary Potentiometer first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy OMS4100 Series Laser Displacement Sensor https://koueitrading.com/global/product/deicy-oms4100-series-laser-displacement-sensor/ Thu, 08 Oct 2020 22:25:23 +0000 https://koueitrading.com/global/?post_type=product&p=163705 Manufacturer: DEICY Co., Ltd. Model: OMS4100 Series Features Compact and lightweight (approximately 95g) despite having a built-in amplifier Operates on a 10 to 30V power supply High-speed measurement rate of 1kHz Specifications Item OMS 4108 OMS 4120 OMS 4122 OMS 4140 Measuring Range (mm) 80 200 200 400 Stand off (mm) 70 150 300 300 […]

The post Deicy OMS4100 Series Laser Displacement Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: OMS4100 Series

Features

  • Compact and lightweight (approximately 95g) despite having a built-in amplifier
  • Operates on a 10 to 30V power supply
  • High-speed measurement rate of 1kHz

Specifications

Item OMS 4108 OMS 4120 OMS 4122 OMS 4140
Measuring Range (mm) 80 200 200 400
Stand off (mm) 70 150 300 300
Resolution (mm)
(with standard filter 200 Hz)		 0.040 0.100 0.100 0.200
Linearity (FSO) ≤ ±0.3% Full Scale Output Same as left
Repeatability (FSO) ≤ ±0.1% Full Scale Output Same as left
Frequency Bandwidth 1 kHz max (can be specified at order time based on application)
Filter Digital average (can be specified at order time based on application)
Light Source Laser Diode
Spot Diameter 0.05 ~ 5 mm (can be specified at order time based on application)
Wavelength 660 ~ 780 nm (can be specified at order time based on application)
Laser Class 2/3R/3B (can be specified at order time based on application)
Detection Method CMOS Linear Image Sensor
Power Supply 10 ~ 30 V DC / 100 mA
Output 0 ~ 5 V / 0 ~ 20 mA / CAN (can be specified at order time based on application)
Operating Temperature -20°C to +50°C (no condensation)
Shape 65 × 50 × 20 mm
Weight Approx. 95 g
Protection Rating IP65
The post Deicy OMS4100 Series Laser Displacement Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy VLT0953 Series Valve Position Sensor (DC/DC LVDT Sensor) https://koueitrading.com/global/product/deicy-vlt0953-series-valve-position-sensor-dc-dc-lvdt-sensor/ Thu, 08 Oct 2020 01:02:48 +0000 https://koueitrading.com/global/?post_type=product&p=163505 Manufacturer: DEICY Co., Ltd. Model: VLT0953 Series Features Measurement length 5mm to 10mm Spring Loaded Shaft Metric or Imperial threads Operating temperature range: 150°C Operating pressure up to 300 bar ■ Dimensions for VLT0953 – Hexagon case with rear cable exit

The post Deicy VLT0953 Series Valve Position Sensor (DC/DC LVDT Sensor) first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: VLT0953 Series

Features

  • Measurement length 5mm to 10mm
  • Spring Loaded Shaft
  • Metric or Imperial threads
  • Operating temperature range: 150°C
  • Operating pressure up to 300 bar

■ Dimensions for VLT0953 – Hexagon case with rear cable exit

The post Deicy VLT0953 Series Valve Position Sensor (DC/DC LVDT Sensor) first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy VHL2003 Series Valve Position Sensor (Hall Effect Sensor) https://koueitrading.com/global/product/deicy-vhl2003-series-valve-position-sensor-hall-effect-sensor/ Thu, 08 Oct 2020 00:53:51 +0000 https://koueitrading.com/global/?post_type=product&p=163501 Manufacturer: DEICY Co., Ltd. Model: VHL2003 Series Features Measurement length 5mm to 10mm Spring Loaded Shaft Metric or Imperial threads Operating temperature range: 150°C Operating pressure up to 300 bar ■ Dimensions for VHL2003-AB-XX-Y-ZZZ – Hexagon case with a sprung loaded shaft

The post Deicy VHL2003 Series Valve Position Sensor (Hall Effect Sensor) first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: VHL2003 Series

Features

  • Measurement length 5mm to 10mm
  • Spring Loaded Shaft
  • Metric or Imperial threads
  • Operating temperature range: 150°C
  • Operating pressure up to 300 bar

■ Dimensions for VHL2003-AB-XX-Y-ZZZ – Hexagon case with a sprung loaded shaft

The post Deicy VHL2003 Series Valve Position Sensor (Hall Effect Sensor) first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy XLS0950 Series DC/DC LVDT https://koueitrading.com/global/product/deicy-xls0950-series-dc-dc-lvdt/ Thu, 08 Oct 2020 00:49:47 +0000 https://koueitrading.com/global/?post_type=product&p=163499 Manufacturer: DEICY Co., Ltd. Model: XLS0950 Series Features LVDT – A non-contact linear displacement sensor that uses a linear voltage differential transformer. It can be equipped with a built-in or external signal conditioner, and operates with three cable wires: power, signal line +, and common. It operates on a regulated 5V DC supply voltage and […]

The post Deicy XLS0950 Series DC/DC LVDT first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: XLS0950 Series

Features

  • LVDT – A non-contact linear displacement sensor that uses a linear voltage differential transformer.
  • It can be equipped with a built-in or external signal conditioner, and operates with three cable wires: power, signal line +, and common.
  • It operates on a regulated 5V DC supply voltage and outputs 0.5V DC to 4.5V DC.
  • Measurement length 10mm to 60mm
  • Extremely compact 9.53mm stainless steel case
  • 3mm diameter stainless steel shaft
  • Operating temperature range up to 180°C
  • Temperature characteristics < ±0.010% FS/℃
  • Protection class IP67
The post Deicy XLS0950 Series DC/DC LVDT first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy AC/AC LVDT LT0600 High Temperature Series https://koueitrading.com/global/product/deicy-ac-ac-lvdt-lt0600-high-temperature-series/ Thu, 08 Oct 2020 00:37:47 +0000 https://koueitrading.com/global/?post_type=product&p=163488 Manufacturer: DEICY Co., Ltd. Model: LT0600HT Series Features Measurement length: 5mm to 60mm Pencil-sized, compact 6mm diameter case Operating temperature range up to 200°C Selecting Mount Options Optional signal condition unit Protection class IP67 ■ Dimensions for LT0601HT-1-XX ■ Dimensions for LT0607HT-1-XX ■ Dimensions for LT0602HT-1-XX

The post Deicy AC/AC LVDT LT0600 High Temperature Series first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: LT0600HT Series

Features

  • Measurement length: 5mm to 60mm
  • Pencil-sized, compact 6mm diameter case
  • Operating temperature range up to 200°C
  • Selecting Mount Options
  • Optional signal condition unit
  • Protection class IP67

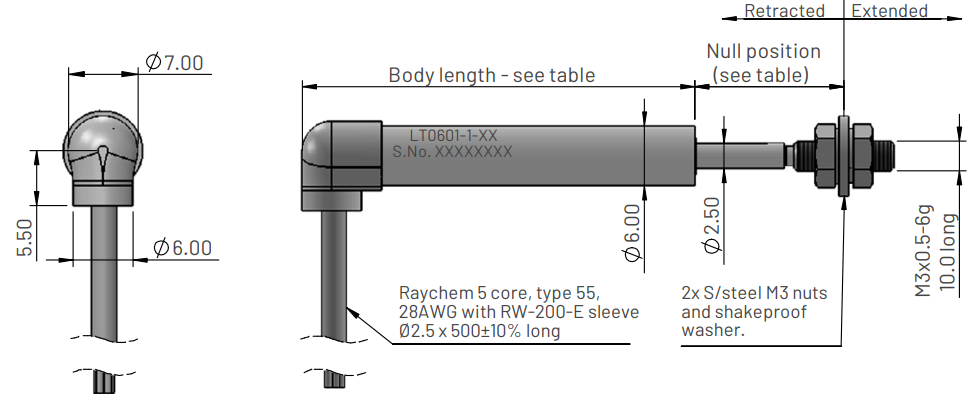

■ Dimensions for LT0601HT-1-XX

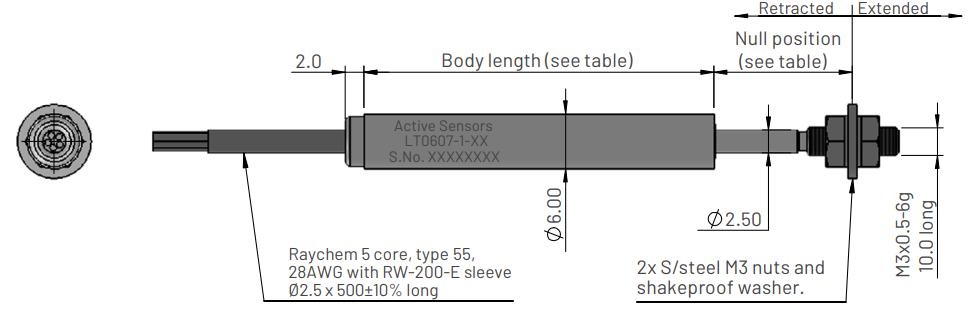

■ Dimensions for LT0607HT-1-XX

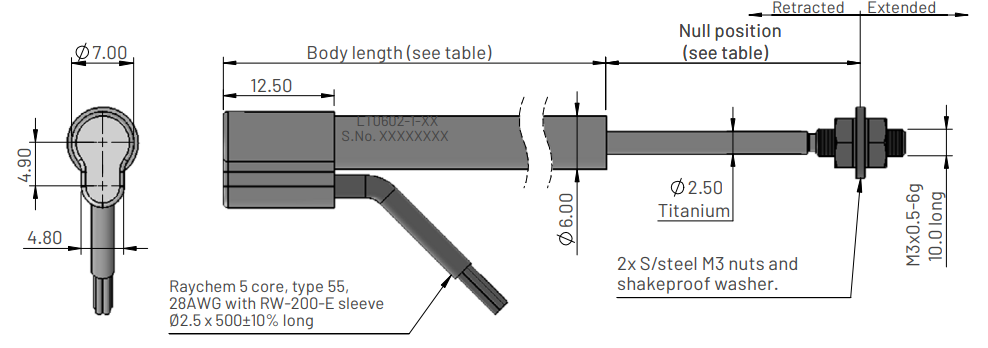

■ Dimensions for LT0602HT-1-XX

The post Deicy AC/AC LVDT LT0600 High Temperature Series first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHL2600 Series Contactless Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhl2600-series-contactless-rotary-position-sensor/ Thu, 08 Oct 2020 00:31:16 +0000 https://koueitrading.com/global/?post_type=product&p=163483 Manufacturer: DEICY Co., Ltd. Model: MHL2600 Series Features Measurement length: 50mm to 300mm Low axial force < 20g Superior Hall Effect Contactless Technology Selecting Mount Options 5 VDC or 8 to 30 VDC power supply Protection class IP68/IP69K ■ Dimensions for MHL2621 – Shaft operated ■ Dimensions for MHL2624 – Side operated carriage

The post Deicy MHL2600 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHL2600 Series

Features

  • Measurement length: 50mm to 300mm
  • Low axial force < 20g
  • Superior Hall Effect Contactless Technology
  • Selecting Mount Options
  • 5 VDC or 8 to 30 VDC power supply
  • Protection class IP68/IP69K

■ Dimensions for MHL2621 – Shaft operated

■ Dimensions for MHL2624 – Side operated carriage

The post Deicy MHL2600 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHL1600 Series Contactless Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhl1600-series-contactless-rotary-position-sensor/ Thu, 08 Oct 2020 00:25:52 +0000 https://koueitrading.com/global/?post_type=product&p=163477 Manufacturer: DEICY Co., Ltd. Model: MHL1600 Series Features 16mm diameter robust aluminum case 5mm diameter stainless steel shaft Measurement length: 50mm to 300mm Low axial force < 20g Superior Hall Effect Contactless Technology 5 VDC or 8 to 30 VDC power supply Protection class IP68/IP69K ■ Dimensions for MHL1621 – Body clamp mounting ■ Dimensions […]

The post Deicy MHL1600 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHL1600 Series

Features

  • 16mm diameter robust aluminum case
  • 5mm diameter stainless steel shaft
  • Measurement length: 50mm to 300mm
  • Low axial force < 20g
  • Superior Hall Effect Contactless Technology
  • 5 VDC or 8 to 30 VDC power supply
  • Protection class IP68/IP69K

■ Dimensions for MHL1621 – Body clamp mounting

■ Dimensions for MHL1622 – Rod end mounting

■ Dimensions for MHL1626 – Quick release ball joint

The post Deicy MHL1600 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHL1400 Series Contactless Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhl1400-series-contactless-rotary-position-sensor/ Thu, 08 Oct 2020 00:19:40 +0000 https://koueitrading.com/global/?post_type=product&p=163472 Manufacturer: DEICY Co., Ltd. Model: MHL1400 Series Features Compact and lightweight Measurement length: 50mm to 300mm Low axial force < 20g Superior Hall Effect Contactless Technology 5 VDC or 8 to 30 VDC power supply Protection class IP68/IP69K ■ Dimensions for MHL1421 – Body clamp mounting ■ Dimensions for MHL1422 – Rod end mounting ■ […]

The post Deicy MHL1400 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHL1400 Series

Features

  • Compact and lightweight
  • Measurement length: 50mm to 300mm
  • Low axial force < 20g
  • Superior Hall Effect Contactless Technology
  • 5 VDC or 8 to 30 VDC power supply
  • Protection class IP68/IP69K

■ Dimensions for MHL1421 – Body clamp mounting

■ Dimensions for MHL1422 – Rod end mounting

■ Dimensions for MHL1426 – Quick release ball joint

The post Deicy MHL1400 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHL1100 Series Contactless Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhl1100-series-contactless-rotary-position-sensor/ Thu, 08 Oct 2020 00:13:25 +0000 https://koueitrading.com/global/?post_type=product&p=163466 Manufacturer: DEICY Co., Ltd. Model: MHL1100 Series Features Very compact and lightweight Measurement length: 50mm to 150mm Low axial force < 10g Superior Hall Effect Contactless Technology 5 VDC or 8 to 30 VDC power supply Protection class IP68/IP69K ■ Dimensions for MHL1121 – Body clamp mounting ■ Dimensions for MHL1122 – Rod end mounting […]

The post Deicy MHL1100 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHL1100 Series

Features

  • Very compact and lightweight
  • Measurement length: 50mm to 150mm
  • Low axial force < 10g
  • Superior Hall Effect Contactless Technology
  • 5 VDC or 8 to 30 VDC power supply
  • Protection class IP68/IP69K

■ Dimensions for MHL1121 – Body clamp mounting

■ Dimensions for MHL1122 – Rod end mounting

■ Dimensions for MHL1126 – Quick release ball joint

The post Deicy MHL1100 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Deicy MHL1200 Series Contactless Rotary Position Sensor https://koueitrading.com/global/product/deicy-mhl1200-series-contactless-rotary-position-sensor/ Thu, 08 Oct 2020 00:08:20 +0000 https://koueitrading.com/global/?post_type=product&p=163462 Manufacturer: DEICY Co., Ltd. Model: MHL1200 Series Features Measurement length: 5mm to 40mm Low axial force < 15g (MHL1211) Superior Hall Effect Contactless Technology 5 VDC or 8 to 30 VDC power supply Protection class IP68/IP69K ■ Dimensions for MHL1211 – Free shaft, 5mm to 40mm measurement range ■ Dimensions for MHL1213 – Sprung shaft, […]

The post Deicy MHL1200 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: DEICY Co., Ltd.
Model: MHL1200 Series

Features

  • Measurement length: 5mm to 40mm
  • Low axial force < 15g (MHL1211)
  • Superior Hall Effect Contactless Technology
  • 5 VDC or 8 to 30 VDC power supply
  • Protection class IP68/IP69K

■ Dimensions for MHL1211 – Free shaft, 5mm to 40mm measurement range

■ Dimensions for MHL1213 – Sprung shaft, 5mm to 25mm measurement range

The post Deicy MHL1200 Series Contactless Rotary Position Sensor first appeared on Kouei Japan Trading | Get Quotation.]]>
