CCS PFB3-20SW-AJT-TE(A) Light Source Units

Manufacturer: CCS Inc.
Model: PFB3-20SW-AJT-TE(A)

Features

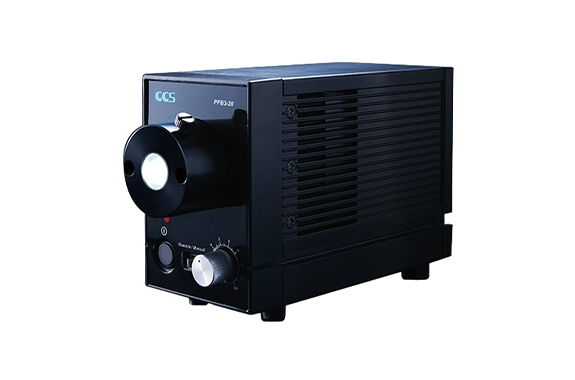

LED light source PFB3-20SW-AJT-TE(A). Analog type external control.
It measures 70 x 150 x 100 mm (width x depth x height). (Not including parts such as connectors, knobs, and feet.)

Specifications

LED color	White
Correlated color temperature	5,700 K typ.
Dimensions	W 70 mm x D 150 mm x H 100 mm (not including connectors, knobs, legs, and other projections) Please refer to the “Dimensions” tab for light guide adapter dimensions chart.
Number of channels	1 channel
Drive method	Constant-current system
Lighting method	Continuous lighting
Intensity control method	Variable-current control
Intensity control	Manual Continuous control using the intensity control knob Remote Analog: Continuous intensity control with a 0 to 5 VDC input voltage External variable resistor: Continuous intensity control with an external variable resistor Note: A faint light turns on when the intensity is set to the minimum.Using the Remote/Manual switch on the front panel Switched with external control connector (analog input voltage or external variable resistor).
Input voltage	24 VDC (rated) 21.6 to 26.4 VDC (range)
Power consumption	18 W typ.
Insulation withstand voltage (input-FG)	Insulation resistance: 500 VDC, 1M Ω min. Withstanding voltage: 250 VAC for one minute, cutoff current: 10 mA
Case material	Aluminum alloy
Error detection display	An error indicator lamp on the front panel flashes (0.5 sec) and output stops
Input connector	DC jack for power supply, Terminal block for power supply, External Control connector (15-pin D-sub)
Conformed standards	CE, UKCA, RoHS, IEC 62471（Low risk）
Operating temperature and humidity	Temperature: 0 to 40℃, Humidity: 25 to 85%RH (No condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Forced air cooling, Intake vents: sides, Exhaust vents: rear
Weight	1,200 g max.
Accessories	User Manual
Caution	Be sure to confirm the specifications of the light guide before use.
