CCS Inc.
CCS TH2-300X300RD-CR35 Flat
Manufacturer: CCS Inc.
Model: TH2-300X300RD-CR35
Feature

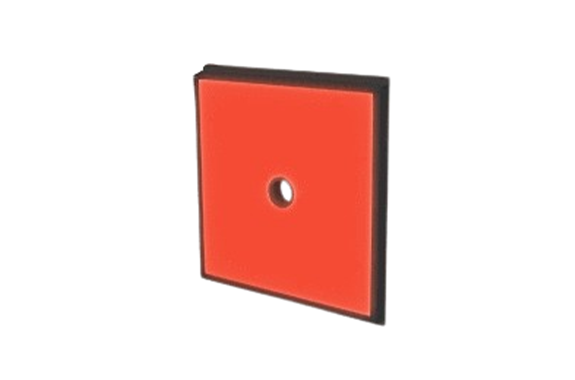

- This Light Unit emits red light and measures 320 x 340 x 25 mm (width x depth x height).
- The light-emitting surface measures 300 x 300 mm.
- Camera-window type.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 635 nm typ. |
| Dimensions | W 320 mm x D 340 mm x H 25 mm |
| Input voltage | 24VDC |
| Power consumption | 83 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | ELP-02V |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 2,700 g max. |
| Accessories | User Manual |
Dimensions (mm)
